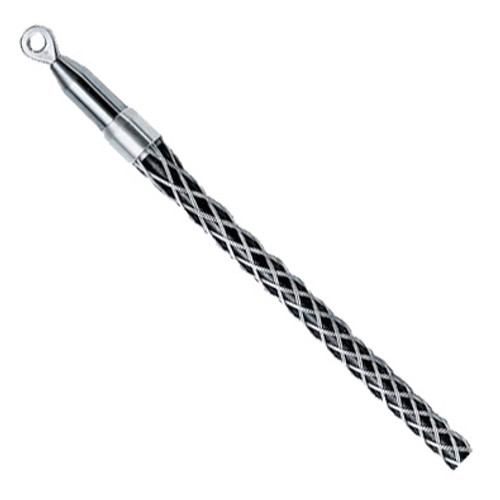

(Part Number: NTCPGE000393) – Fiber Optic Grip – Swivel Eye .42-.61″ – Cable Pulling – Pulling Grips – Fiber Optic Cable Pulling Grips – Fiber Optic Grip Swivel Eye – Condux International

Description

.42-.61″ cable dia.

Double/Single weave mesh, galvanized steel for outside plant cable. Used for the installation of Fiber Optic communication lines either underground, overhead, through conduit or through enclosures. They will fit single cables or cable bundles, are easily installed on the cable and are reusable.

Cable Diameter Range [in]:
.42 to .61

Cable Diameter Range [mm]:
11 to 15

Extended Part Number:
033-29-1010

Eye Length [in]:
4

Eye Length [mm]:
108

Height [in]:
10

Length [in]:
10

Width [in]:
10

Hole Size [in]:
0.245

Hole Size [mm]:
6

Item #:
08643618

Item Name:
Fiber Optic Grip – Swivel Eye .42-.61

Mesh Length at Nominal Diameter [mm]:
533

Outer Diameter of Rotating Eye [in]:
0.9

Outer Diameter of Rotating Eye [mm]:
23

Package Type:
Each

Shipping Method:
Parcel

Thickness of Eye [in]:
0.505

Thickness of Eye [mm]:
13

Type of Handling Units:
BAG – Bag

Units Per Package:
1

Weight [lb]:
0.340000

Weight [lb]:
1
