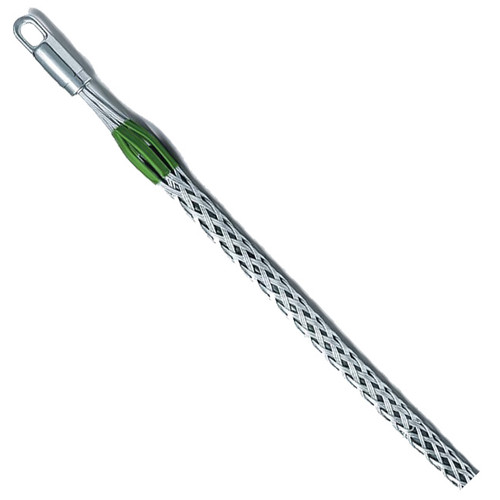

(Part Number: NTCPGE000385) – Multiple Strength Grip – Rotating Eye 3.00-3.49″ – Cable Pulling – Pulling Grips – Overhead Pulling Grips – Multiple Strength Grip Rotating Eye – Condux International

Description

3.00-3.49″ cable dia.

Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections.

Cable Diameter Range [in]:
3.00 to 3.49

Cable Diameter Range [mm]:
76 to 89

Color:
Aluminum

Extended Part Number:
033-022-1030

Eye Length [in]:
10

Eye Length [mm]:
254

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08641861

Item Name:
Multiple Strength Grip – Rotating Eye 3.00-3.49

Mesh Length at Nominal Diameter [mm]:
1372

Outer Diameter of Rotating Eye [in]:
0.143

Outer Diameter of Rotating Eye [mm]:
48

Package Type:
Each

Shipping Method:
Parcel

Thickness of Eye [in]:
0.694

Thickness of Eye [mm]:
18

Type of Handling Units:
BAG – Bag

Units Per Package:
1

Weight [lb]:
6.910000

Weight [lb]:
7.5
