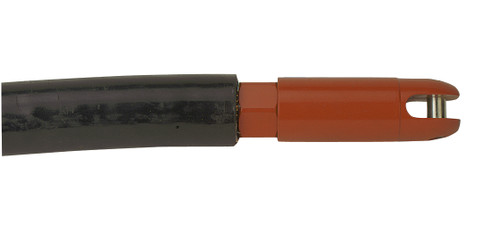

(Part Number: NTCPGE000357) – Clevis Head Power Pulling Eye 2000 kcmil – Cable Pulling – Reusable Power Pulling Eyes – Clevis Head Power Pulling Eyes – Condux International

Description

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.

Cable Size Circular [mil]:
2000

Color:
Red

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08918050

Item Name:
Clevis Head Power Pulling Eye 2000 kcmil

Package Type:
Each

Pin Center [in]:
1.23

Pin Center [mm]:
31

Pin Diameter [in]:
.88

Pin Diameter [mm]:
22

Replacement Plug Part Number:
08918023

Shipping Method:
Parcel

Slot Depth [in]:
2.8

Slot Depth [mm]:
71

Slot Width [in]:
1

Slot Width [mm]:
25

Units Per Package:
1

Weight [lb]:
5.500000
