Description

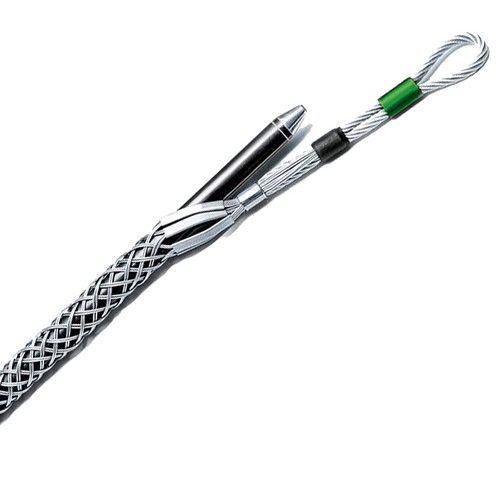

.38-.62″ conductor diameter range. Dua-Pull Pulling Grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications. They are most commonly used for attaching pulling lines to conductors, conductors to running boards and double Fiber Opticing for conductor-to-conductor connections. They accommodate ACSR, ACAR, all aluminum and copper conductors, ground wires messenger strands and synthetic ropes not provided by any other grip.

Cable Diameter Range [in]:
0.157-1.125

Cable Diameter Range [mm]:
4.0-28.6

Color:
Green

Extended Part Number:
033-27-1038

Eye Cable Diameter [in]:
0.375

Eye Cable Diameter [mm]:
10

Eye Length [in]:
12

Eye Length [mm]:
305

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08641716

Item Name:
Dua-Pull Grips .38-.62

Mesh Length at Nominal Diameter [mm]:
914

Package Type:
Each

Rope Diameter Range [in]:
.50 to .90

Rope Diameter Range [mm]:
13 to 23

Shipping Method:
Parcel

Type of Handling Units:
BAG – Bag

Units Per Package:
1

Weight [lb]:
1.700000

Weight [lb]:
2.5
