(Part Number: NTCPGE000266) – K Type Grips – Short Forged Eye .62-.74″ – Cable Pulling – Pulling Grips – Underground Pulling Grips – K Type Grips Short Forged Eye – Condux International

Description

.62-.74″ cable dia., 6800lb

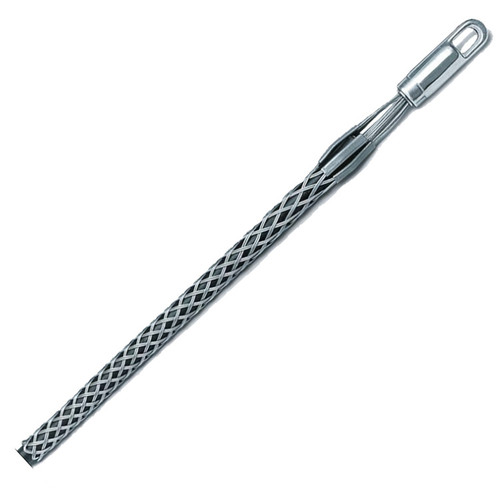

Rotating Eye, K-Type Pulling Grips are made of high strength galvanized steel strand. All grips feature double weave mesh for greater strength and added mesh contact on the cable, to handle longer or heavier pulling jobs. The forged eye mates easily with a swivel or shackle. They are specially designed for use in the installation of underground power cables, communication lines and service lines into factories, shopping centers, construction projects and general underground electrical construction.

Cable Diameter Range [in]:
.62 to .74

Cable Diameter Range [mm]:
16 to 19

Extended Part Number:
033-01-002

Eye Length [in]:
5

Eye Length [mm]:
127

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08642028

Item Name:
K Type Grips – Short Forged Eye .62-.74

Mesh Length at Nominal Diameter [mm]:
279

Outer Diameter of Rotating Eye [in]:
0.875

Outer Diameter of Rotating Eye [mm]:
22

Package Type:
Each

Shipping Method:
Parcel

Thickness of Eye [in]:
0.268

Thickness of Eye [mm]:
6

Type of Handling Units:
BAG – Bag

Units Per Package:
1

Weight [lb]:
0.430000

Weight [lb]:
1
