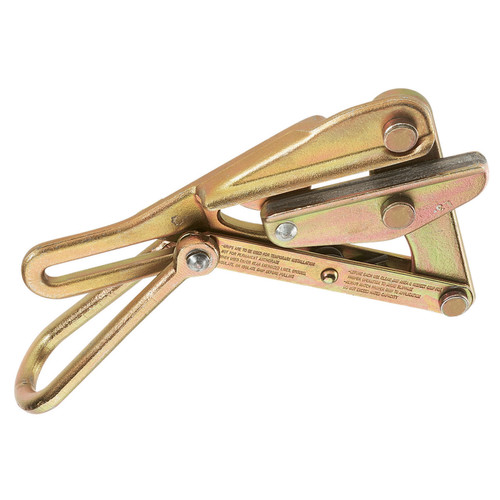

(Part Number: NTATOT000173) – Chicago Grip for Extra-High-Stength Cables Messenger Guy Strand and Conductors 0.218″ – 0.550″ – Aerial Materials – Klein

Description

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.5 to 13.9 mm). Double ”V” grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

• Designed for cable sizes from 0.218 to 0.55-Inch (5.5 to 13.9 mm)
• Double ”V” grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Max Safe Load of 8000 lb (3629 kg)
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Locking handle keeps jaw open while grip is placed on cable with a hot stick

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
KT1684-5

Item Name:
Chicago Grip for Extra-High-Stength Cables, Messenger, Guy Strand and Conductors

Jaw Length [in]:
5

Jaw Length [mm]:
127

Maximum Cable Diameter [in]:
.55

Maximum Cable Diameter [mm]:
14

Maximum Tension [lb]:
8000

Minimum Cable Diameter [in]:
0.218

Minimum Cable Diameter [mm]:
5.54

Shipping Method:
Parcel

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
6.500000

Weight [lb]:
6.25
