(Part Number: NTATCB000085) – Pole Mount Single Roller Cable Block w/ Cable Retainer – Aerial Materials – Condux International

Description

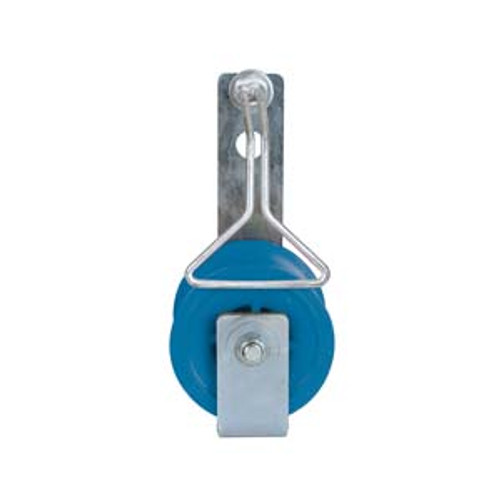

Steel Frame Pole Mount Roller block with Plastic Roller and Cable Retainer.

The Pole Mount Single Roller Cable Block is specially designed for easy mounting and free-rolling required in figure-eight cable construction. Quickly mounts to a 3-bolt strand clamp on a pole and allows pulling from pole to pole. Support a single coaxial, fiber optic or copper cable or aerial innerduct up to 2.75″ (70 mm) outside diameter. Steel frame, with plastic or aluminum rollers. Pole Mount Single Roller Cable Blocks may be equipped with a steel cable retainer to keep the cable or innerduct on the roller, even in low-tension situations. Replacement rollers available.

Prior to Ordering Always Know the Following:
? Cable Diameter
? Max Cable O.D. 2.75″ (70 mm)
? Aluminum Sheave and Plastic Sheave Frames not interchangeable

No poly-based rope is to be used on plastic rollers. If you are using poly rope, please order aluminum block rollers.

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
18000620

Length [in]:
6-5/8

Load Rating [lb]:
10,000

Maximum Lash Bundle Diameter [in]:
1.75

Package Type:
Each

Shipping Method:
Parcel

Supports the Following:
single coaxial, fiber optic or copper cable or aerial innerduct up to 2.75 outside diameter

Type of Packages:
275

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
4.250000

Weight [lb]:
4.25

Width [in]:
31
