(Part Number: NOISRT000411) – 5RU 288 Port SM LC-UPC FPX Patch and Splice Panel With Stranded Pigtails and Trays – Indoor Fiber Connectivity – Commscope

Description

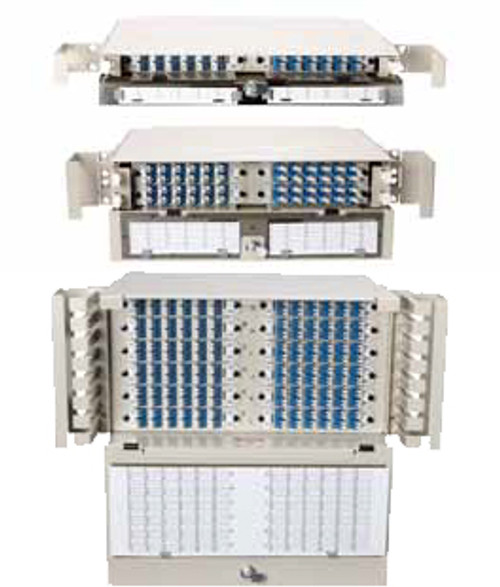

Commscope’s FPX series provides industry-leading fiber cable protection and management in a modular footprint. Now redesigned with a depth of 12.0″ or less and with front only as well as front and rear access, the FPX panel is now suitable for a wide range of applications including central offices, data centers, indoor and outdoor cabinets, huts, CEV’s and more. The angled adapter packs for the FPX family are a small part of what makes this a great panel, allowing the highest densities with maximum cable management features.

• Telcordia NEBS GR-60-CORE Compliant
• Left and Right Angled Adapter Plates offer superior cable management
• Integrated vertical cable guides
• Includes bracketry for 19″ or 23″ EIA Racks
• Shallow depth for excellent fit in OSP Cabinets
• Superior strain relief grommets can be positioned in the rear and middle left or right
• Slide out splicing and fiber management area for front of rack access

Cable Type:
Blank

Connection Type:
LC-UPC

Depth [in]:
12

Extended Part Number:
300100111085

Fiber Capacity:
288

Fiber Count:
288

Fiber Type:
Singlemode

Freight Class:
50

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Height [in]:
8.75

Pin Center [mm]:
65

Rack Units:
5

Shipping Height [in]:
15.75

Shipping Length [in]:
28.625

Shipping Method:
Parcel

Shipping Width [in]:
21.5

Similar to:
ADC

Splice Trays:
6

Unit of Measure:
EA.

Weight [lb]:
32.000000

Width [in]:
17
