(Part Number: NOISRT000389) – 288 Port SM LSX HD Panel SC/APC Stranded Dielectric Loose Tube 100FT Stub – Indoor Fiber Connectivity – Commscope

Description

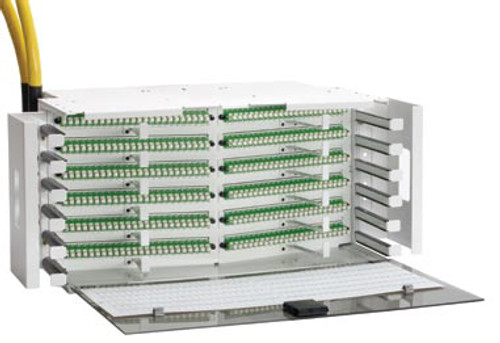

Commscope LSX-LL/0WD031 288 Port SC-APC LSX High Density Panel with OSP Dielectric Loose Tube 100FT 144F Cable Stubs

Commscope offers the high-density LSX 288-position panel available preterminated with intrafacility (IFC) or outside plant (OSP) cables or in termination and splice configurations. Commscope™s 288-position LSX panel (with either SC or LC) offers integrated vertical cable guides (VCG™s) within the panel, as well as on each side of the panel. VCG™s effectively segregate cables, aiding in easy-to-follow routing paths. The angled bulkhead style panel offers additional protection from bends that can increase attenuation and loss.

*This panel only fits in 23″ EIA Racks

Cable Type:
Loose Tube

Color:
Putty White

Connection Type:
SC-APC

Depth [in]:
12

Extended Part Number:
300001751198

Fiber Capacity:
288

Fiber Count:
288

Fiber Type:
Singlemode

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Height [in]:
11

Rack Spacing:
23 Only

Rack Units:
7

Shipping Height [in]:
24

Shipping Length [in]:
48

Shipping Method:
LTL

Shipping Width [in]:
40

Unit of Measure:
EA.

Weight [lb]:
50.000000

Width [in]:
22
