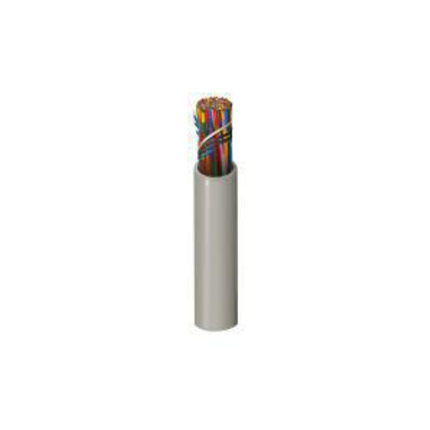

NN00099 - Category 3 Cable, 50 Pair, U/UTP, LSZH Indoor CPR Eca

NN00099 – Category 3 Cable, 50 Pair, U/UTP, LSZH Indoor CPR Eca

Call for Price

Compare
SKU: NN00099 Categories: , , ,

Description

Product Overview

Suitable Applications: Backbone cable; Support current and future Category 3 applications

Construction Details

Conductor
Size Stranding Material No. of Pairs No. of Elements
24 AWG Solid BC – Bare Copper 50 100
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.88 mm (0.035 in) White & Blue, White & Orange, White & Green, White & Brown, White & Grey, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Grey
Blue, Orange, Green, Brown, Grey
Table Notes: Telecom Color Order
Cable Core
Description
5 units of 10 pairs covered with a polyester foil
Outer Jacket
Material Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 16.5 mm (0.650 in) Yes
Overall Cable Diameter (Nominal): 16.5 mm (0.650 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km 66 pF/m (20 pF/ft) 330 pF/100m 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. SRL (Structural Return Loss) [dB]
0.772 2.2 dB/100m 45 43 12
1 2.6 dB/100m 44 41 12
4 5.6 dB/100m 34 32 12
8 8.5 dB/100m 29 27 12
10 9.7 dB/100m 28 26 12
16 13.1 dB/100m 25 23 10
Voltage
Voltage Rating
72 V DC

Mechanical Characteristics

Temperature
Operating Installation
-30°C to +60°C 0°C To +50°C
Bend Radius
Stationary Min. Installation Min.
82.5 mm (3.25 in) 247.5 mm

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
Data Category: Category 3
ISO/IEC Compliance: ISO/IEC 11801-1
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision: Revision Number: 0.233 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length EAN
NN00099.001000 Gray Reel 1,000 m 8719605103536
