(Part Number: NMWLFO000303) – Visual Fault Locator Kit – Fiber Testing Equipment – Jonard

The VFL-150 kit includes the FC/LC Adapter (VFL-25125) and 2 AAA Batteries.

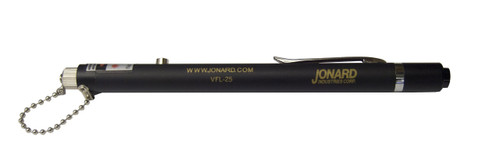

This pen style VFL is specially designed for field personnel who need a portable light source tool for fiber tracing, fiber routing, continuity testing, to locate breakpoints (bending or cracking in fiber optic cables), and poor connections.

The VFL works in an OTDR dead zone and is used for end-to-end visual fiber identification. Operates in either CW (continuous wave) or pulsed mode. Not recommended For use on dark colored or armored cables.

TECHNICAL SPECIFICATIONS
Light Source: Class II Laser Diode 1mw
Wavelength: 650nm
Battery Life: 60 Hours
Connector: 2.5mm universal
Working Temperature: -4F (-20C) to 140F (60C)
Storage Temperature: -40F (-40C) to 185F (85C)
Power: 2 AAA Batteries

Freight Class:
50

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Shipping Height [in]:
2

Shipping Length [in]:
12

Shipping Method:
Parcel

Shipping Width [in]:
4

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
0.270000
