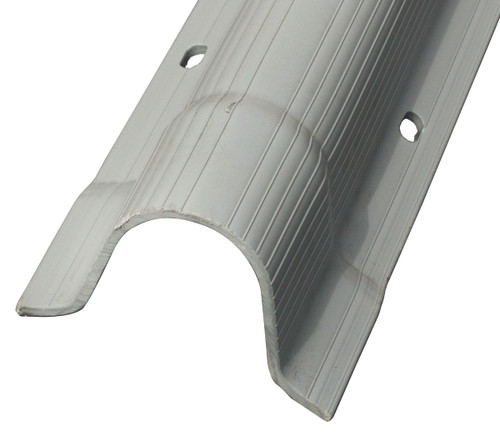

(Part Number: NIHAPR000097) – 2″ U Guard Plastic 10′ Length (Bundle of 10) – Aerial Materials – Electrical Materials Company

Description

Plastic U-Guards (risers) are designed to give non-conductive, high impact protection for utility power and communication cables installed vertically on poles.

The U-Guard offers excellent impact strength and weather-ability over a temperature range greater than any other non-conductive riser material.

We are the industry leader in plastic risers and with many satisfied customers, the U-Guard has proven to be one of our best selling products. The reasons for the success of our plastic U-Guard are its many features listed below:

• Installs quickly and easily with U-Guard fasteners.
• Easily field cut to desired length.
• Ribbed surface.
• Sizes: 1″ through 6″. Lengths of 5′, 8′, and 10′
• Belled end on 2″ through 6″ provides for overlap on adjacent sections.
• Excellent UV protection.

It is recommended to use two straps (BOLTUGUARD4STRAP) and four lag screws (BOLTLAG1/4X2-1/2) per each 8′ section.THESE ARE SOLD SEPARATELY.

U-Guard is the superior alternative to conduit riser systems and U-Guard provides savings in material cost, installation time and maintenance.

We also supply Steel U-Guards plus a large selection of accessories including; Steel and Plastic Adapters, Back Plates and Fasteners.

Note: Not for use on outside or inside of buildings.

Item ships LTL (Less than truckload) due to its length.

Depth [in]:
2.125

Flat Width [in]:
2

Height [in]:
3

Length [in]:
120

Packaging Type:
Boxes

Width [in]:
5

Item #:
BOLTUGUARD2PLFL

Item Name:
2 U Guard Plastic 10′ Length

Length [ft]:
10

Package Type:
Each

Required Hardware:
BOLTLAG1/4X1-1/2, 1/4 Lag Bolt 1-1/2 Long

Shipping Height [in]:
15

Shipping Length [in]:
125

Shipping Method:
LTL

Shipping Width [in]:
10

Similar to:
PM2-80, PM2-40, PM2-30,

Size [in]:
2

Thickness [mil]:
15

Unit of Measure:
pack

Units Per Package:
10

Weight [lb]:
155.000000

Width [in]:
4.875
