(Part Number: NIHAPR000093) – 2″ U Guard Steel 8′ Length – Aerial Materials – Electrical Materials Company

Description

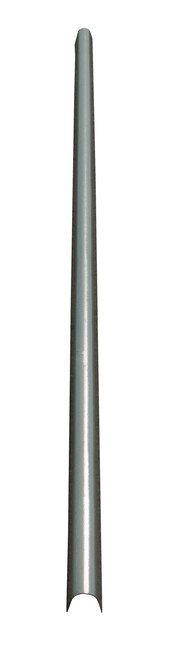

These 2″ Hot Dipped Galvanized Pole Riser Guards are non-flanged, and they require straps and lag bolts to secure to the pole.

It is recommended to use two straps (BOLTUGUARD4STRAP) and four lag screws (BOLTLAG1/4X2-1/2) per each 8′ section.THESE ARE SOLD SEPARATELY.

The steel “U” Guards are manufactured of 14 gauge steel, with the maximum weight of hot dipped galvanizing (ASTM G235) to be compatible with the life expectancy of standard pole line hardware.

ASTM Specification:
G235

Cable Diameter Range [in]:
0.157-1.125

Cable Diameter Range [mm]:
4.0-28.6

Coating:
235 MLL Hot Dipped Galvanized

Depth [in]:
2

Flat Width [in]:
2.19

Freight Class:
85

Freight Class:
50

Height [in]:
3

Length [in]:
96

Packaging Type:
Boxes

Width [in]:
2

Item #:
BOLTUGUARD2

Item Name:
2 U Guard Steel 8′ Length

Length [ft]:
8

Material:
Steel

Maximum Lash Bundle Diameter [in]:
1.75

Package Type:
Each

Required Hardware:
BOLTUGUARD2STRAP, 2 U Guard Strap Steel|BOLTLAG1/4X2-1/2, 1/4 Lag Bolt 2-1/2 Long

Shipping Height [in]:
3

Shipping Length [in]:
96

Shipping Method:
Parcel

Shipping Width [in]:
2.38

Size [in]:
2

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
14.000000

Weight [kg]:
6.3

Weight [lb]:
13.9

Width [in]:
2.25
