(Part Number: NIHAPR000092) – 2¼” x 8′ Green Steel U Guard w/ Flange – Aerial Materials – Electrical Materials Company

Description

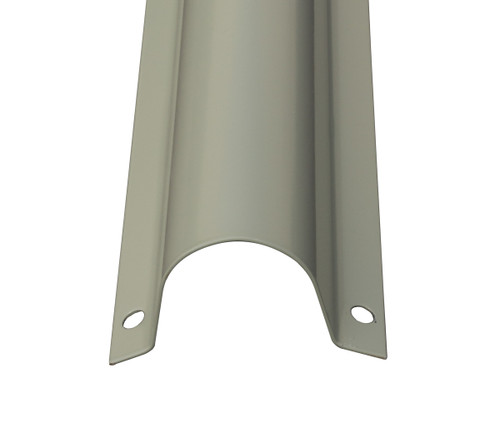

These 2″ Hot Dipped Galvanized Pole Riser Guards are flanged with a powder-coated finish. They secure to the pole using standard lag bolts through the flange holes.

The steel U-Guards are manufactured of 14 gauge steel, with the maximum weight of hot dipped galvanizing (ASTM G235) to be compatible with the life expectancy of standard pole line hardware.

It is recommended to use two straps (BOLTUGUARD4STRAP) and four lag screws (BOLTLAG1/4X2-1/2) per each 8′ section.THESE ARE SOLD SEPARATELY.

Cable Diameter Range [in]:
0.157-1.125

Cable Diameter Range [mm]:
4.0-28.6

Freight Class:
50

Height [in]:
3

Length [in]:
96

Packaging Type:
Boxes

Width [in]:
3

Maximum Lash Bundle Diameter [in]:
1.75

Shipping Height [in]:
3

Shipping Length [in]:
98

Shipping Method:
LTL

Shipping Width [in]:
3

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
15.500000
