(Part Number: NIHAPR000091) – 4″ U Guard Steel 8′ Length Non-Flanged – Aerial Materials – Electrical Materials Company

Description

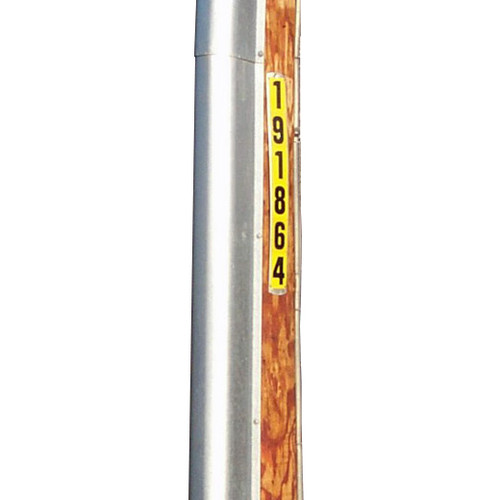

These 4″ Hot Dipped Galvanized Pole Riser Guards are non-flanged, and they require straps and lag screws to secure to the pole. It is recommended to use two straps (BOLTUGUARD4STRAP) and four lag screws (BOLTLAG1/4X2-1/2) per each 8′ section.THESE ARE SOLD SEPARATELY.

The steel “U” Guards are manufactured of 14 gauge steel, with the maximum weight of hot dipped galvanizing (ASTM G235) to be compatible with the life expectancy of standard pole line hardware.

ASTM Specification:
G235

Coating:
Hot Dip Galvanized

Country of Manufacture:
US

Freight Class:
50

Item #:
BOLTUGUARD4

Item Name:
4 U Guard Steel 8′ Length

Length [ft]:
8

Material:
Steel

Package Type:
Each

Required Hardware:
BOLTLAG1/4X2-1/2, 1/4 Lag Bolt 2-1/2 Long|BOLTUGUARD4STRAP, 4″ U Guard Strap Steel”

Shipping Height [in]:
5

Shipping Length [in]:
99

Shipping Method:
Parcel

Shipping Width [in]:
5

Size [in]:
4

Thickness [in]:
0.08

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
29.000000

Weight [lb]:
28

Width [in]:
3.75

Length (ft):
8
