(Part Number: NIHAPL000340) – SWG-20-5 Sidewalk Clamp End Fitting – Aerial Materials – Maclean Power Systems

Description

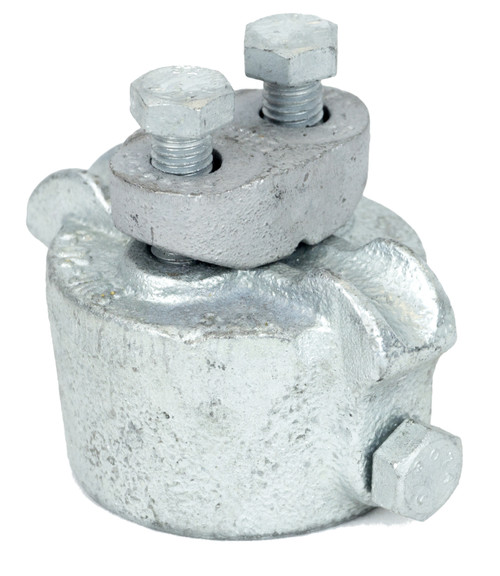

SWGB-20-5 Sidewalk Guy Fitting End Fitting

Features:

These cast iron fittings are used with standard pipe near sidewalks and buildings where there is insufficient space for standard guying and where head clearance must be maintained. The SWGB-20-54 pole plate is mounted with one 5/8″ bolt and two ½” lag screws. The SWG-20-5 end fitting clamps the strand. Wire range: ¼” to 9/16″.

Alloy Type:
Ductile Iron

ASTM Specification:
A153

Coating:
Hot Dip Galvanized

Extended Part Number:
J1502

Eye Length [in]:
2

Freight Class:
50

Height [in]:
10

Length [in]:
10

Width [in]:
10

Guy Attachments:
1

Shipping Length [in]:
5

Shipping Method:
Parcel

Shipping Width [in]:
5

Strand Diameter:
5/16 – 9/16

Unit of Measure:
EA.

Units Per Package:
20

Weight [lb]:
5.000000

Weight [lb]:
5
