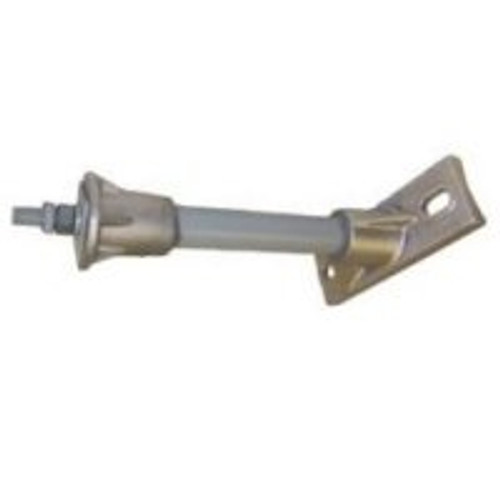

(Part Number: NIHAPL000317) – 1½” x 12″ Fiberglass Extension Arm – Aerial Materials – Maclean Power Systems

Description

Features:

• Accepts 5/8″ mounting hardware.
• Cleats to prevent bracket rotation on wood poles.

Material:

• Base: Ductile Iron, Hot Dip Galvanized
• End Fitting: Aluminum
• Rod: Fiberglass, MPS gray ultraviolet (UV) protective coating

Specifications:

• Minimum Ultimate Vertical Load: 1200 lbs.
• Minimum Ultimate Horizontal Load: 1500 lbs.
• Minimum Ultimate Long Load: 1200 lbs.
• 15 Degree Offset

Height [in]:
5

Length [in]:
14

Width [in]:
3

Item #:
BOLTEXTARM12

Item Name:
1-1/2 x 12 Fiberglass Extension Arm”

Length [in]:
12

Package Type:
Each

Shipping Height [in]:
5

Shipping Length [in]:
14

Shipping Method:
Parcel

Shipping Width [in]:
3

Unit of Measure:
EA.

Units Per Package:
10

Weight [lb]:
5.800000

Weight [lb]:
5.8
