(Part Number: NIHAPL000141) – 26″ Galvanized Extension Arm – Aerial Materials – Maclean Power Systems

Description

Features:

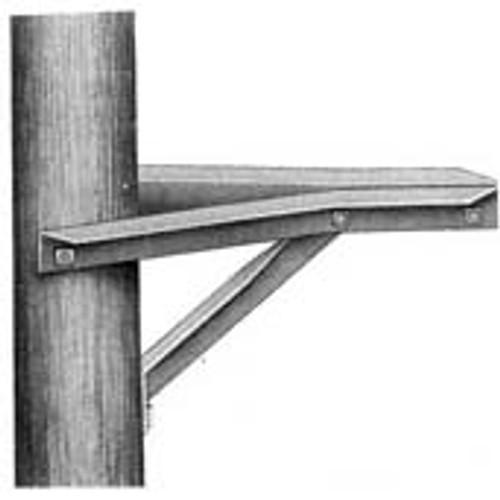

• Supports a telephone cable at a distance from the pole
• Messenger cable is held by a standard J1096 suspension clamp bolted against the underside of the two angles by a 5‚8″ machine bolt which is fitted between the legs of the two angles and can be adjusted for proper extension from the pole
• Mounts to pole with a 5‚8″ or 3‚4″ machine bolt at upper position and two 1‚2″ lag screws at the lower end of the tee support
• All mounting bolts, lag screws and suspension clamps must be ordered separately
• Constructed of high quality steel, hot-dip galvanized
• U.S. made versions available

Specifications:

Angle Size: 3″ x 2½” x 5‚16″

Extension from Center of Pole: 17½” – 26″

Cable Diameter Range [in]:
0.157-1.125

Cable Diameter Range [mm]:
4.0-28.6

Freight Class:
50

Height [in]:
10

Length [in]:
28

Packaging Type:
Boxes

Width [in]:
15

Item #:
BOLTEXTARM26STL

Item Name:
26 Galvanized Extension Arm

Length [in]:
26 – 44.5

Maximum Lash Bundle Diameter [in]:
1.75

Package Type:
Each

Shipping Height [in]:
4

Shipping Length [in]:
19

Shipping Method:
Parcel

Shipping Width [in]:
10

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
31.000000

Weight [lb]:
31
