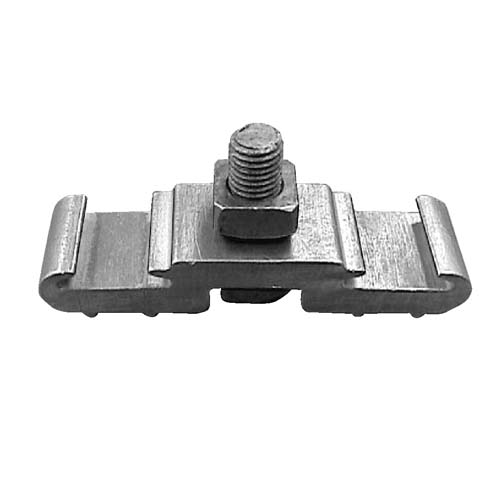

(Part Number: NIHABD000100) – 1½” X 5¼” Aluminum Mounting Plate w/ 3″ X 5/8″ Long Plated Bolt – Aerial Materials – BAND-IT

Description

• Mounting Plates are used on poles to secure or hang cable suspension clamps, communication equipment or signal control boxes
• Mounting Plates can be used in conjunction with Bolt Clamps and banding to permanently attach heavy equipment and service items to poles having a larger diameter than 10″.
• Cable communications and management applications include: lighting brackets, transmitters, service wire drops, guy wire, span wired attachments, decorations, large illuminated signage, control boxes, service equipment boxes and storage boxes.
• Aluminum extruded plate with 5/8 – 11 x 2″ (50.8) plated bolt and nut.
• Available in two sizes.
• Band slot width 1.375″ to accommodate a single or double wrap of our ½” BAND-IT Band up to our 1¼” wide x .044 thick Giant Band.
• Determine appropriate band width and thickness based on stress and load of item to be mounted.

Cable Diameter Range [in]:
0.157-1.125

Cable Diameter Range [mm]:
4.0-28.6

Clamp Bolt Diameter [in]:
5/8

Clamp Width [in]:
1.50

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Head Type:
Square

Hole Size [in]:
11/16

Length [in]:
4.75

Material:
Aluminum

Maximum Lash Bundle Diameter [in]:
1.75

Mounting Hole Diameter [mm]:
11/16

Number of Bolts:
1 5/8 x 3

Opening Size [in]:
1.375

Shipping Height [in]:
3

Shipping Length [in]:
4.75

Shipping Method:
Parcel

Shipping Width [in]:
1.5

Unit of Measure:
EA.

Units Per Package:
25

Weight [lb]:
0.880000

Weight [lb]:
0.88
