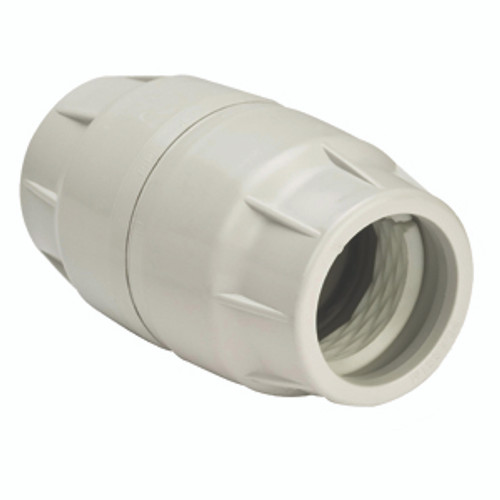

(Part Number: NICSHD001057) – Condux – 08566110 – 1″ Comfit Coupler – Outdoor Fiber Connectivity – Innerduct and Conduit – Couplings and Couplers – Push Fit HDPE Couplers – Condux International

Description

The Comfit coupler is the perfect solution for joining HDPE ducts sized 2″ IPS and smaller. The press fit design is revolutionary in that it will seal at pressure up to 230 psi, yet it will allow flexibility at the joint for ease of use during duct and cable installations.

The Comfit is perfect for cable blowing/jetting, and is also suitable for cable pulling applications. This coupler does not require any tools or additional compression. Just insert the ducts up to the internal stops, and you are good to go.

Duct Size [in]:
1.0

Duct Size [mm]:
25.4

Height [in]:
10

Length [in]:
10

Width [in]:
10

Inside Diameter [in]:
1.315

Inside Diameter [mm]:
33.40

Item #:
08566110

Item Name:
1 Comfit Coupler

Maximum Tension [lb]:
580

Nominal Outside Diameter [in]:
2-1/4

Package Type:
Each

Shipping Method:
Parcel

Similar to:
Plassim 40 – 03 M 000 3 A-D Push-Lock 1-908356

Units Per Package:
70

Weight [lb]:
0.150000

Maximum Pressure [PSI]:
230
