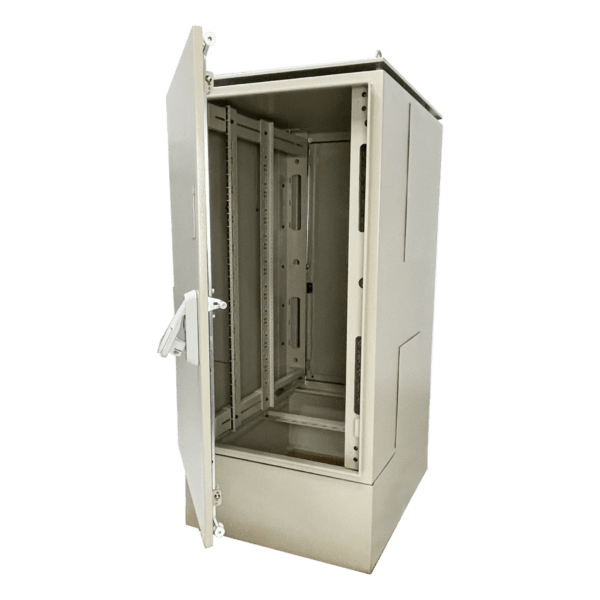

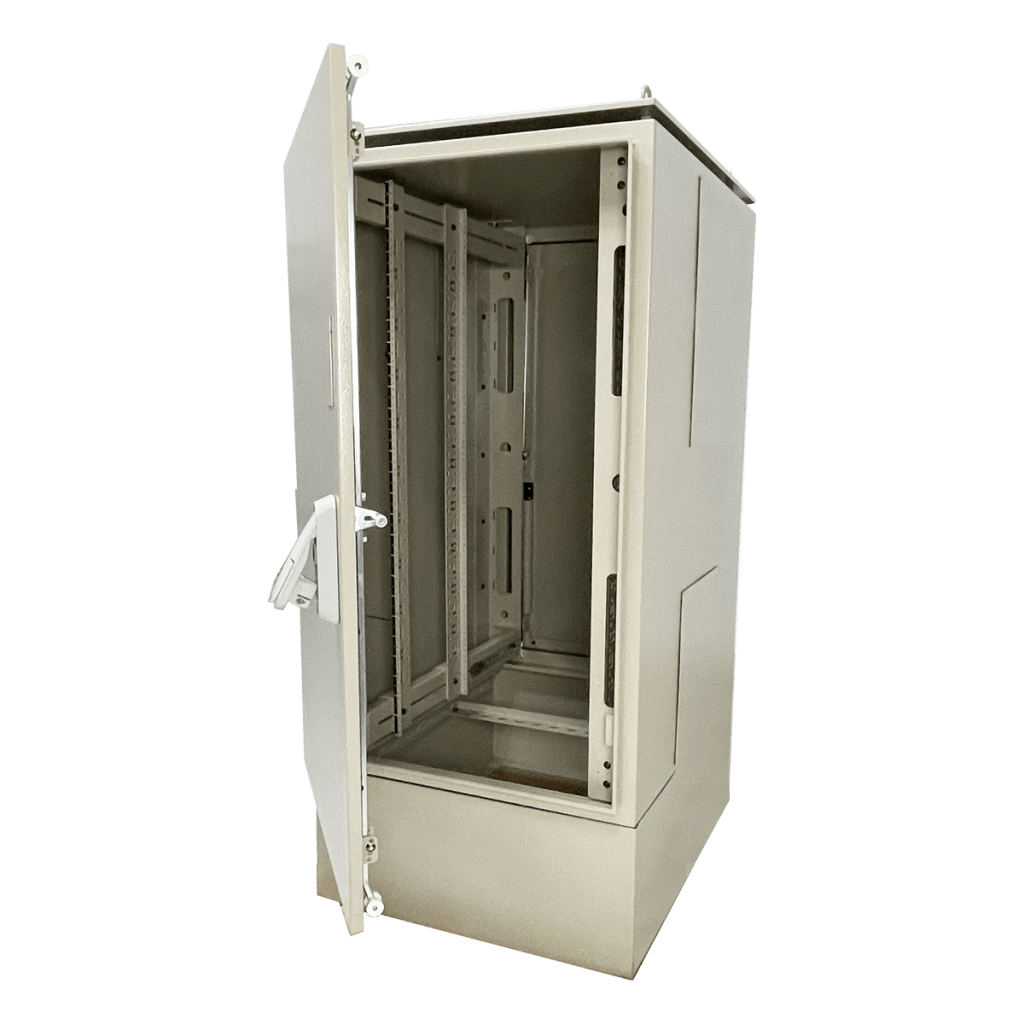

NEMA 4 Edge Cabinet – Environmental Cabinet – Great Lakes Data Racks and Cabinets

Description

19″ EIA RAILS, AIRFLOW, CABLE MANAGEMENT & SECURITY–IDEAL FOR PROTECTING RACK MOUNT EQUIPMENT IN INDUSTRIAL AND OUTDOOR TELECOM APPLICATIONS

• 26, RMU 48″H x 28″W x 34″D
• Galvanized steel with textured powdercoat finish, beige
• IP-rated access control with 3-pt latching on front and rear doors; combine with optional RFID reader to monitor and manage user access
• Removable gland plates for optional IP-rated AC unit or fan and filter assemblies
• Two pair of #12-24 tapped mounting rails, depth adjustable
• Cable management features along the rail include attachment points for optional cinch straps and ¼ turn “D” rings
• Includes pad mount plinth and cover, which serves as a solar shield
• Open bottom of cabinet allows pass-thru from cabinet to plinth
• Color: Beige, textured finish
• Certifications: NEMA 250 Type 4
