(Part Number: MPC-103) – Bluetooth Micro Power Checker – Fiber Testing Equipment – EXFO

Description

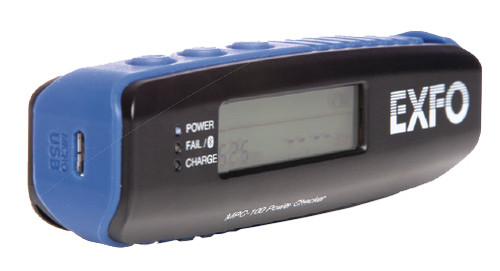

The MPC-100 Series Optical Power Checker is a hand-held wireless device that pairs with Android or iOS smart devices via Bluetooth. Its straightforward and free smart applications make the operation of this instrument really simple. Optical test data can be saved directly into the smart device for seamless sharing via text and emails. The MPC-103 features an InGaAs detector with a range of -60 to 10 dBm, and has a wide range of test capability with seven available wavelengths.

Battery Voltage:
3 hours continuous

Connection Adapter:
Standard Universal 2.50mm

Included Features:
Quick Reference Guide, USB to Micro USB Cables and Wrist Strap

Length [in]:
3407

OPM Wavelengths nm:
850/980/1300/1310/1490/1550/1625

Range dBM:
-60 to 10

Resolution dB:
0.01

Shipping Height [in]:
2

Shipping Length [in]:
6

Shipping Method:
Parcel

Shipping Weight [lb]:
1

Shipping Width [in]:
2

Uncertainty dB:
+/-0.5

Weight [lb]:
0.150000

Weight [lb]:
0.15

Width [in]:
0.1

Wireless Capability:
4.0 BLE (4m)
