(Part Number: MLOPS-12-SCA-N-Y-M4-M4-F1-B-1-Y) – 12 Port Singlemode SC-APC OPTIMA S Patch and Splice Closure with 900UM Pigtail and Tray – Outdoor Fiber Connectivity – MULTILINK

Description

OPS-12-SCA-N-Y-M4-M4-F1-B-1-Y

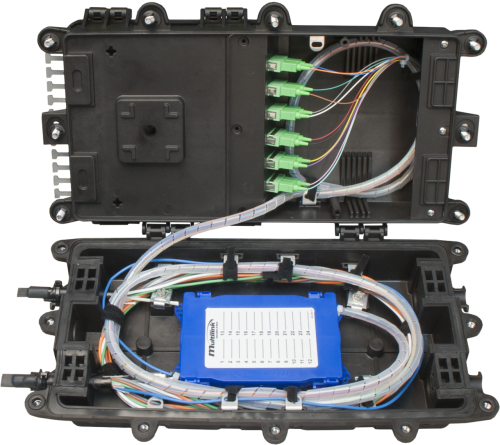

12 Port Singlemode SC-APC OPTIMA S Patch and Splice Closure with 900UM Pigtail and Tray, and grounding kit

The Optima„ S optical cross connect splicing terminal offers the fastest hook up and disconnect speeds of any drop cable field connection. The Optima S„ utilizes computer aided engineering for optimal use in the Outside Plant and FTTX networks, with separate compartments for splices and fiber drops. It also utilizes a specially designed precision cost effective drop system with standard bulkhead adapters. The Optima„ S raises subscriber terminal deployment to a new level for field installations. It also has provisions for an expandable feed through capability to other Optima„ S terminal devices.

This closure includes:

 (1) OPTIMA-S STANDARD TERM SPLICE W/O GROMMETS WITH MULTILINK LOGO & (1) SPLICE TRAY-Part # 020-349-00

(6)  MSC/APC DUPLEX CONN GREEN ZIRCONIA SLVS W/SNAP IN DUST CAPS- Part # 10-5378

(1) KIT GND STUD 1/4-20 BRASS- Part # 072-121-10

(2) GROMMET .48″- Part # 642-113-10

(1) GROMMET 1 FLAT DROP OPS-S- Part # 642-114-10

(1) GROMMET PLUG- Part # 642-112-10

(1) 12 FIBER SC/APC SPIRAL WRAP PIGTAIL, SM, 3M- Part# 10-6418

Cable Ports:
12

Connection Type:
SC-APC

Fiber Capacity:
144

Height [in]:
4.38

Length [in]:
14.83

Width [in]:
8.25

Weight [lb]:
10.000000

Shipping Height [in]:
5.5

Shipping Length [in]:
16

Shipping Method:
Parcel

Shipping Width [in]:
9.5

Single Fiber Splice Capacity:
72

Unit of Measure:
EA.
