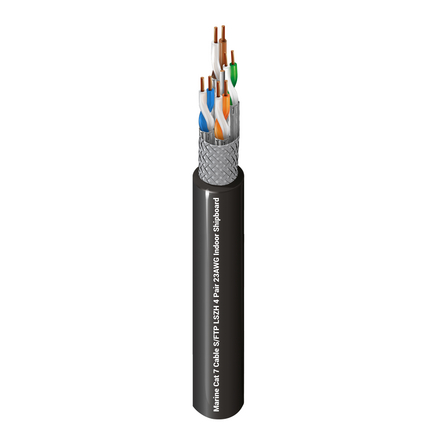

Product Overview
| Suitable Applications: |
Shipbuilding, in-cabin passenger Wi-Fi, high-bandwidth IPTV, PoE lighting, device charging stations, onboard security cameras, etc. |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 23 |
Solid |
BC – Bare Copper |
4 |
| Material |
Nominal Diameter |
| PO – Polyolefin (Foam) |
1.35 mm |
| Number |
Color |
| Pair 1 |
White & Blue |
| Pair 2 |
White & Orange |
| Pair 3 |
White & Green |
| Pair 4 |
White & Brown |
| Element |
Type |
Material |
Coverage [%] |
| Individual Shielded Pair |
Tape |
Bi-Laminate (Alum+Poly) |
100% |
| Type |
Material |
Coverage [%] |
Drainwire Material |
Drainwire AWG |
| Braid |
Tinned Copper (TC) |
30% |
Tinned Copper |
28 AWG |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| LSZH – Low Smoke Zero Halogen (SHF1) |
7.8 mm |
0.3 mm |
Construction and Dimensions
| Min Elongation at Breakof Jacket: |
125 % |
| Min Tensile Strength of Jacket: |
9 MPa |
| Min Tensile Strength of Jacket Aged: |
30 % |
| Min Elongation at Break of Jacket Aged: |
30 % |
Electrical Characteristics
| Max. Conductor DCR |
Max DCR Unbalanced Between Pairs [%] |
Max. DCR Unbalanced Within Pair [%] |
| 95 Ohm/km |
4 % |
2 % |
| Max. Capacitance Unbalance |
Max. Mutual Capacitance |
| 160 pF/100m |
56 pF/m |
| Insulation Resistance: |
5000 MOhm.m |
| Nominal Characteristic Impedance |
| 100 Ohm |
| Max. Delay Skew |
Nominal Velocity of Propagation (VP) [%] |
| 25 ns/100m |
78% |
| Frequency [MHz] |
Max. Insertion Loss (Attenuation) |
Min. NEXT [dB] |
Min. PSNEXT [dB] |
Min. ACR [dB] |
Min. PSACR [dB] |
Min. ACRF (ELFEXT) [dB] |
Min. PSACRF (PSELFEXT) [dB] |
Min. RL (Return Loss) [dB] |
Min. TCL [dB] |
Min. ELTCTL [dB] |
| 1 MHz |
2.1 dB/100m |
78 dB |
75 dB |
75.9 dB |
72.9 dB |
78 dB |
75 dB |
20 dB |
40 dB |
35 dB |
| 4 MHz |
3.7 dB/100m |
78 dB |
75 dB |
74.3 dB |
71.3 dB |
78 dB |
75 dB |
23 dB |
34 dB |
23 dB |
| 10 MHz |
5.8 dB/100m |
78 dB |
75 dB |
72.2 dB |
69.2 dB |
74 dB |
71 dB |
25 dB |
30 dB |
15 dB |
| 16 MHz |
7.3 dB/100m |
78 dB |
75 dB |
70.7 dB |
67.7 dB |
69.9 dB |
66.9 dB |
25 dB |
28 dB |
10.9 dB |
| 31.3 MHz |
10.3 dB/100m |
78 dB |
75 dB |
67.7 dB |
64.7 dB |
64.1 dB |
61.1 dB |
23.6 dB |
25.1 dB |
5.1 dB |
| 62.5 MHz |
14.6 dB/100m |
75.5 dB |
72.5 dB |
60.9 dB |
57.9 dB |
58.1 dB |
55.1 dB |
21.5 dB |
22 dB |
|
| 100 MHz |
18.5 dB/100m |
72.4 dB |
69.4 dB |
53.9 dB |
50.9 dB |
54 dB |
51 dB |
20.1 dB |
20 dB |
|
| 125 MHz |
20.8 dB/100m |
70.9 dB |
67.9 dB |
50.2 dB |
47.2 dB |
52.1 dB |
49.1 dB |
19.4 dB |
19 dB |
|
| 200 MHz |
26.5 dB/100m |
67.9 dB |
64.9 dB |
41.4 dB |
38.4 dB |
48 dB |
45 dB |
18 dB |
17 dB |
|
| 250 MHz |
29.7 dB/100m |
66.4 dB |
63.4 dB |
36.7 dB |
33.7 dB |
46 dB |
43 dB |
17.3 dB |
16 dB |
|
| 300 MHz |
32.7 dB/100m |
65.2 dB |
62.2 dB |
32.6 dB |
29.6 dB |
44.5 dB |
41.5 dB |
17.3 dB |
|
|
| 500 MHz |
42.8 dB/100m |
61.9 dB |
58.9 dB |
19.2 dB |
16.2 dB |
40 dB |
37 dB |
17.3 dB |
|
|
| 600 MHz |
47.1 dB/100m |
60.7 dB |
57.7 dB |
13.6 dB |
10.6 dB |
38.4 dB |
35.4 dB |
17.3 dB |
|
|
| Table Notes: |
Limits below 4 MHz are for information only. Reference standard: ISO/IEC 61156-5 ed. 2.0 (2009) |
| Coupling Attenuation Class: |
Type Ib |
| Transfer Impedance Class: |
Grade 2 |
| Voltage Rating [V] |
| 72 V DC |
Temperature Range
| Installation Temperature Range: |
-5°C To +80°C |
| Operating Temperature Range: |
-40°C To +80°C |
Mechanical Characteristics
| Bending Test: |
Low temperature bending test -40 °C : No cracks |
| Pressure Test for Jacket: |
Test at high temperature IEC 60811-508 80±2 °C 4h : ? 50 % |
| Heat Stroke Test: |
Heat Shock test at (150±3°C ,1h) : No cracks |
| Bulk Cable Weight: |
65.5 kg/km |
| Min. Bend Radius During Installation: |
10*D |
Standards
| ISO/IEC Compliance: |
ISO/IEC 11801-2, IEC 60092-360 |
| CENELEC Compliance: |
EN 50173-1 |
| Data Category: |
Category 7 |
| ANSI Compliance: |
ANSI/TIA 568.2-D (2018) |
| IEEE Compliance: |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
UL1581 VW-1 |
| IEC Flammability: |
IEC 60332-1-2, IEC 60332-3-22 |
| Fluorine Content Test IEC60684-2: |
HF ? 0.1% |
| IEC 60754-1 – Halogen Amount: |
HCL+HBr ? 0.5% |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
10 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
Related Part Numbers
| Footnote: |
*Ordering stock code will be created at the time of placing the order and the stock code will include cable part code, outer jacket color & putup length. |
Product Notes
| Notes: |
LR (Lloyds Register) certification |
History
| Update and Revision: |
Revision Number: 0.54 Revision Date: 12-12-2023 |
