LightScope ZWP® Double Jacket/Single Armor, Gel-Filled, Outdoor Stranded Loose Tube Cable 810010321/DB | O-144-L2-8W-M12BK/20G – CommScope

Call for Price

Download Spec Sheet

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Specifications

Product Classification

Regional Availability EMEA
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-L2

General Specifications

Armor Type Corrugated steel
Cable Type Stranded loose tube
Construction Type Armored
Subunit Type Gel-filled
Inner Jacket Color Black
Jacket Color Black
Jacket Marking Meters
Subunit, quantity 12
Fibers per Subunit, quantity 12
Total Fiber Count 144

Dimensions

Buffer Tube/Subunit Diameter 2 mm | 0.079 in
Diameter Over Inner Jacket 15 mm | 0.591 in
Diameter Over Jacket 20.4 mm | 0.803 in

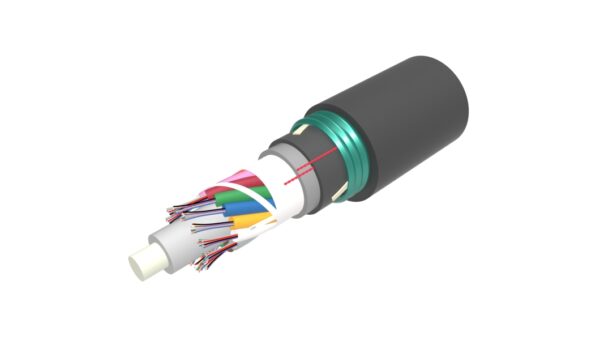

Representative Image

Click on image to enlarge.


Material Specifications

Jacket Material PE
Inner Jacket Material PE

Mechanical Specifications

Minimum Bend Radius, loaded 408 mm | 16.063 in
Minimum Bend Radius, unloaded 306 mm | 12.047 in
Tensile Load, long term, maximum 1800 N | 404.656 lbf
Tensile Load, short term, maximum 4000 N | 899.236 lbf
Compression 40 N/mm | 228.406 lb/in
Compression Test Method IEC 60794-1 E3
Flex 25 cycles
Flex Test Method IEC 60794-1 E6
Impact 10 N-m | 88.507 in lb
Impact Test Method IEC 60794-1 E4
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1 E1

Optical Specifications

Fiber Type G.652.D and G.657.A1

Optical Specifications, Wavelength Specific

Standards Compliance ITU-T G.652.D | ITU-T G.657.A1

Environmental Specifications

Installation temperature -30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature
 -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
