Description

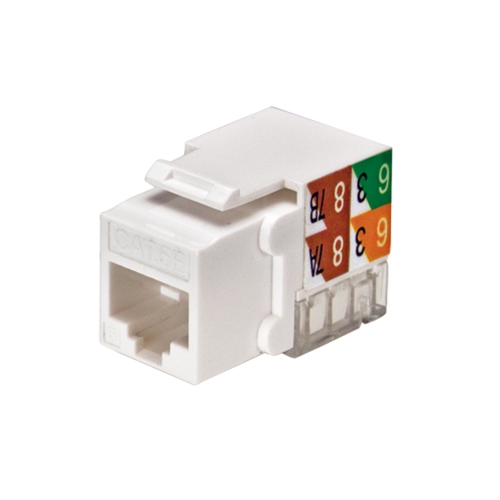

The Vericom Category 5e UTP RJ45 Keystone Jacks support 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, Digital video and broadband/baseband analog video, and Voice over Internet Protocol (VoIP).
The Vericom Category 5e UTP RJ45 Keystone Jacks are designed to meet and exceed ANSI/TIA-568 C Category 5e and ISO 11801 Class D electrical performance requirements for frequencies up to 100 MHz. These keystone jacks are compatible with most manufacturers’ faceplates, are easy to punch down, and clearly labeled A/B wiring schemes.
Features & Benefits
- Rated for CAT5e network applications
- Mounts in modular faceplates, surface mount boxes or panels that accept keystone jacks
- Gold plated contacts
- Universal label shows T568A and T568B wiring for ease of use
- 110 IDCs are technician friendly with a standard punchdown tool
- Accepts 22-26 AWG Stranded and Solid wire
- Retention cap secures terminations for long term reliability
- Compatible with most manufacturers’ faceplates
- Size: 14.5 mm wide by 16.0 mm high
- Available in multiple color options to suit your specific install
- Sold Individually
Standards Compliance
- ANSI TIA/EIA-568 C
- ISO/IEC 11801
- IEC 61156-5
- RoHS Compliant
Additional information
| Weight | 0.024 lbs |
|---|
