Network/IT (Telecom) - Wire Wrap Tools

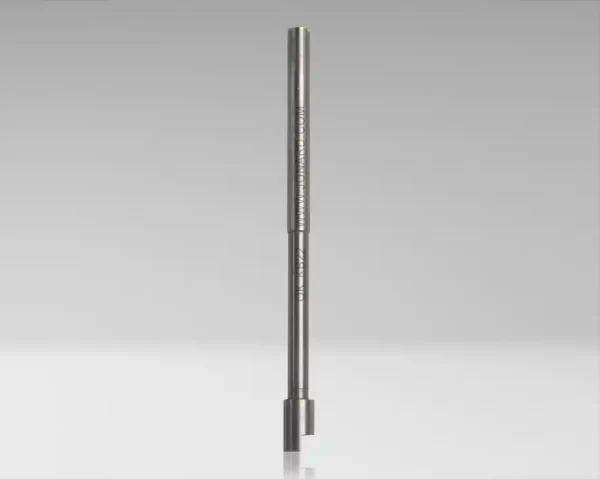

(Part Number: KB22) – Wire Wrapping Bit, 22 AWG – Network/IT (Telecom) – Wire Wrap Tools – Testing Equipment – Jonard

Call for Price

Download Spec Sheet

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description
Brand

Description

Fully compatible with any make or model of wire wrapping tools, this 3″ wire wrapping bit is perfect for wrapping 22 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

Compatible Wrap Sleeve Part No.: P2224, P2224INS

Specifications

Sleeve Part No.	P2224 and P2224INS (sold separately)
Wrap Function	Wrap
Wrap Type	Regular
Wire Gauge	22 AWG (0.65 mm)
Maximum Terminal Diagonal	0.073″ (1.85 mm)
Minimum Terminal Diagonal	0.054″ (1.37 mm)
Terminal Hole Diameter	0.075″ (1.9 mm)
Terminal Hole Depth	0.75″ (19.05 mm)
Effective Radius	0.117″ (2.97 mm)
Wrap Post Size	0.045″ (1.14 mm)
Length	3(7.9375cm)
Weight	0.02 lb (8.172 g)
UPC #	811490013087

Brand

Jonard
