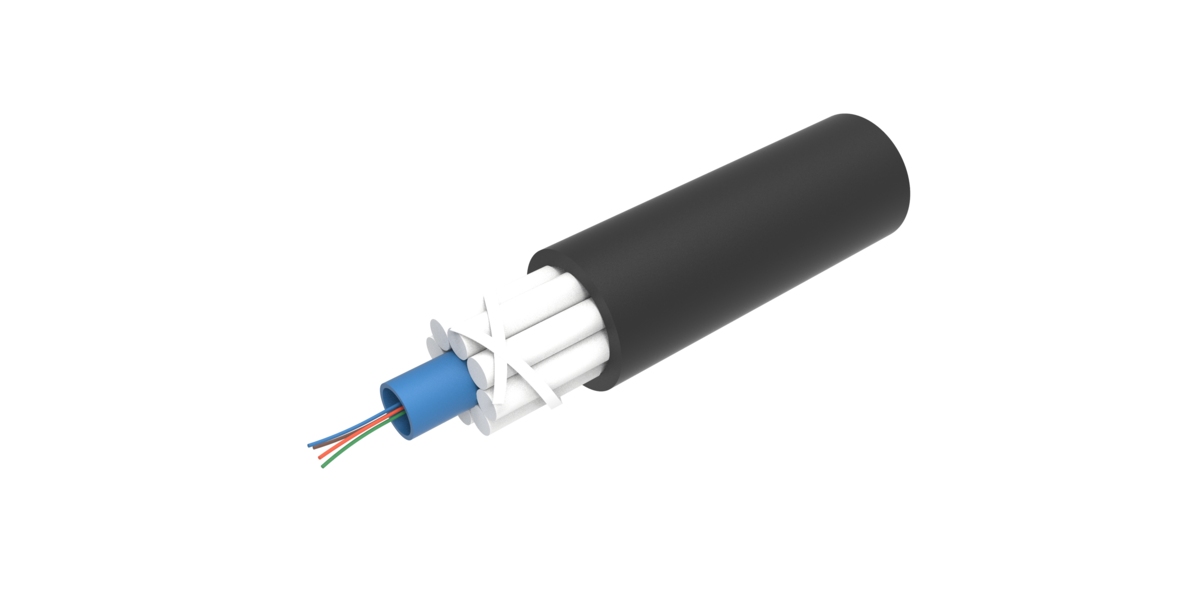

Indoor/Outdoor Low Smoke Zero Halogen, TeraSPEED® Central Loose Tube, GRP Armoured Fiber Optic Cable, 8-fiber, Singlemode OS2, Gel-free, black. Provides Rodent Resistance. 760254724 | C-008-CA-8W-M08BK/28G/GRP/D – CommScope

Description

Specifications

Product Classification

Regional Availability	Australia/New Zealand | EMEA
Portfolio	CommScope®
Product Type	Fiber indoor/outdoor cable
Product Series	C-CA

General Specifications

Armor Type	Non-metallic rods
Cable Type	Loose tube
Subunit Type	Gel-filled
Filler, quantity	1
Jacket Color	Black
Jacket Marking	Meters
Fibers per Subunit, quantity	8
Total Fiber Count	8

Dimensions

Cable Length	2000 m | 6561.68 ft
Diameter Over Jacket	9 mm | 0.354 in

Mechanical Specifications

Minimum Bend Radius, loaded	228.6 mm | 9 in
Minimum Bend Radius, unloaded	175.3 mm | 6.902 in
Tensile Load, long term, maximum	750 N | 168.607 lbf
Tensile Load, short term, maximum	2002 N | 450.068 lbf

Optical Specifications

Fiber Type

OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum	0.35 dB/km @ 1,300 nm | 0.35 dB/km @ 1,550 nm | 0.45 dB/km @ 1,310 nm
Standards Compliance	IEC 60794-1 | TIA-492CAAB (OS2)

Environmental Specifications

Installation temperature	-5 °C to +50 °C (+23 °F to +122 °F)
Operating Temperature class=”tooltip” type=”button” data-toggle=”tooltip” data-placement=”top” data-original-title=”Specification applicable to non-terminated bulk fiber cable”>	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Environmental Space	Low Smoke Zero Halogen (LSZH)

Packaging and Weights

Cable weight

94 kg/km | 63.165 lb/kft
