Indoor/Outdoor Fiber Optic Cable, 72-fiber, loose tube, ULSZH, OS2, 2000 m 2-599610-4 – CommScope

Description

Specifications

Product Classification

Regional Availability	Asia | Australia/New Zealand | EMEA
Portfolio	CommScope®
Product Type	Fiber indoor/outdoor cable
Product Series	C-LN

General Specifications

Cable Type	Loose tube
Subunit Type	Gel-filled
Jacket Color	Black
Jacket Marking	Meters
Fibers per Subunit, quantity	12
Total Fiber Count	72

Dimensions

Cable Length	2000 m | 6561.68 ft
Diameter Over Jacket	12.7 mm | 0.5 in

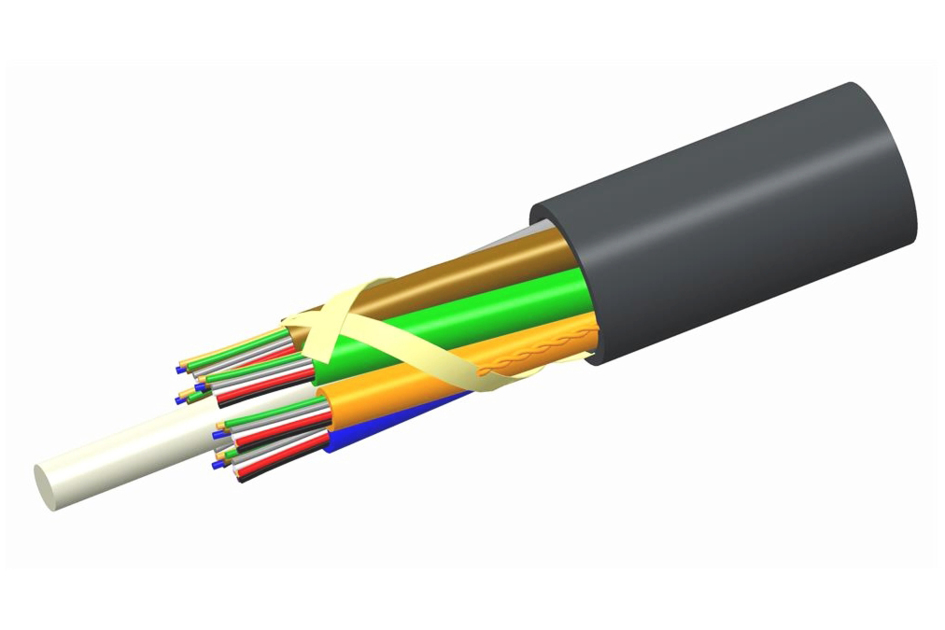

Representative Image

Click on image to enlarge.

class=”modal-btn” type=”button” data-toggle=”accordion-modal” data-target=”#ImageGalleryModal_RepresentativeImage_0″> class=”close” type=”button” data-dismiss=”modal”>Close Modal

Mechanical Specifications

Minimum Bend Radius, loaded	250 mm | 9.843 in
Tensile Load, short term, maximum	2700 N | 606.984 lbf

Optical Specifications

Fiber Type

OS2

Optical Specifications, Wavelength Specific

Standards Compliance

TIA-492CAAB (OS2)

Environmental Specifications

Installation temperature	-5 °C to +50 °C (+23 °F to +122 °F)
Operating Temperature class=”tooltip” type=”button” data-toggle=”tooltip” data-placement=”top” data-original-title=”Specification applicable to non-terminated bulk fiber cable”>	-20 °C to +60 °C (-4 °F to +140 °F)
Storage Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space	Universal Low Smoke Zero Halogen (ULSZH)

Packaging and Weights

Cable weight

155 kg/km | 104.155 lb/kft
