IBDN25P - Category 5e Backbone Cable, 25 Pair, U/UTP, CMP

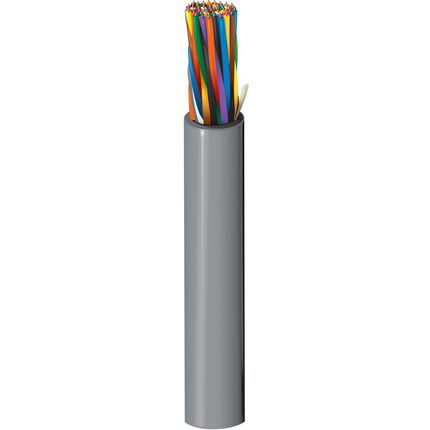

IBDN25P – Category 5e Backbone Cable, 25 Pair, U/UTP, CMP

Call for Price

Compare
SKU: IBDN25P Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Backbone Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 AWG Solid BC – Bare Copper 25
Insulation
Material Color Code
FEP – Fluorinated Ethylene Propylene Western Electric (Non-Striped)
Outer Jacket
Material Nom. Diameter Ripcord
FEP – Fluorinated Ethylene Propylene 0.478 in (12.1 mm) Yes
Overall Cable Diameter (Nominal): 0.478 in (12.1 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 72%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 62.3 20.0 100 ± 15%
4 4.1 dB/100m 53.3 23.0 100 ± 15%
8 5.8 dB/100m 48.8 24.5 100 ± 15%
10 6.5 dB/100m 47.3 25.0 100 ± 15%
16 8.2 dB/100m 44.3 25.0 100 ± 15%
20 9.3 dB/100m 42.8 25.0 100 ± 15%
25 10.4 dB/100m 41.3 24.3 100 ± 15%
31.25 11.7 dB/100m 39.9 23.6 100 ± 15%
62.5 17.0 dB/100m 35.4 21.5 100 ± 15%
100 22.0 dB/100m 32.3 20.1 100 ± 15%
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -40°C To +60°C 0°C To +60°C -40°C To +60°C
Bend Radius
Stationary Min. Installation Min.
4.5 in (110 mm) 8.75 in (222 mm)
Max. Pull Tension: 150 lbs (68 kg)
Bulk Cable Weight: 137 lbs/1000ft

Standards and Compliance

Environmental Suitability: Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: CMP
CEC / C(UL) Compliance: CMP
ICEA Compliance: S-90-661
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
Third Party Performance Verification: Category 5e
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: IBDN25R

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings.
