Description
Item Number
HNLF Al-doped
HNLF Al-doped
Description
HNLF Al-doped
| Attenuation | ≤ 7.0 (dB/km) |
|---|---|
| Typical Applications | Non-linear Loop Mirror, Optical Regeneration, Optical Sampling, Parametric Amplification, Photosensitive Fiber for Writing of UV-gratings, Pulse Compression, Supercontinuum Generation, Wavelength Conversion |
| Type | Non-Standard |
| Cutoff Wavelength | ≤ 1500 (nm) |
| PMD (Typical) | ≤ 0.70 (ps/√km) |
| Fiber Length | 50 to 500 (m) |
| Fiber Length Tolerance | ± 3 |
| Effective Area | typical, 15.2 (µm2) |
| Dispersion Slope | typical, 0.024 (ps/(nm²·km)) |
| Dispersion | -2.0 to ± 2.0 (ps/(nm·km)) |
| Splice Loss to SSMF Pigtail | ≤ 0.65 (dB) |
| Splice Loss to SSMF Pigtail (Typical) | 0.5 (dB) |
| Typical Attenuation | 6.2 |
| SBS threshold x effective length | 86 (typical) (W·m) |
| Non-Linear Coefficient (Typical) | 6.9 (W-1•km-1) |
| Item Description | HNLF Al-doped Highly Non-Linear Fiber Modules |
| Pigtail Option (P) | 1-SSMF with FC/APC connectors, 2-SSMF with FC/PC connectors |
| Mechanical Option (M) | 1-29×175 mm spool with silicone glue, 2-29×175 mm spool without silicone glue |
| Dispersion Code (DD) / Dispersion Code (DD) at 1550 nm (ps/(nm*km) | 80415m1 / m1: -1.0 ± 1.0, 80415p1 / p1: 1.0 ± 1.0, 80415z0 / z0: 0.0 ± 1.0 |

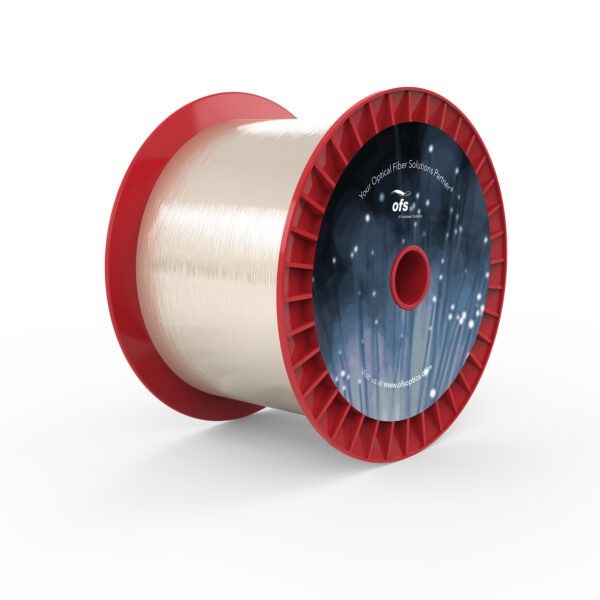

| HNLF Module | The HNLF module is delivered with short (1-2 meter) Standard Single-mode (SSMF) pigtails with connectors. An additional 1-2 meter ridge fiber is spliced between the HNLF and the SSMF. The fiber with pigtails is delivered on a 29 x 175 mm spool covered with a protective layer of silicone glue.
Ordering code: HNLF-AL-LLLL-P-M-DD |
| Length Code (L) | Length in step of 50 meters (0050, 0100, 0150, …, 2000) |
| HNLF Fiber Type | The HNLF fiber can also be delivered without pigtails on a 105 x 265 mm spool without any silicone. However, please note that splice loss of about 1 dB from HNLF to SSMF must be expected when using standard fusion splicers
Please specify item number and quality when placing orders. |
| Specifications | 3077 |
