High Density Wall Mount Cabinet, 12U x 32″D

Call for Price

Compare
SKU: VW4-8121 Category:

Description

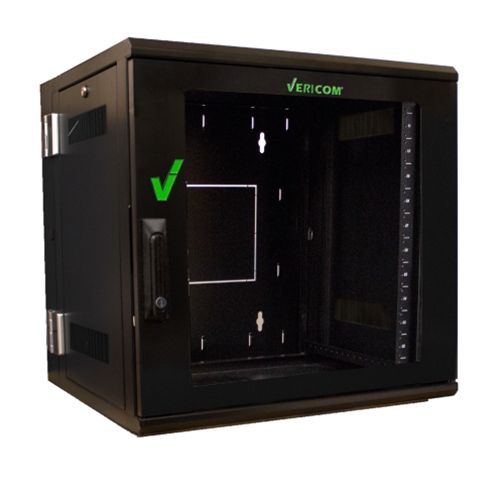

Vericom High Density Swing Out Wall Mount Cabinets are built for heavy duty, large-scale applications. A perfect choice for networking projects requiring larger load capacities, the Vericom High Density Swing Out Wall Mount Cabinet is a fully welded frame of 14 gauge cold rolled steel that supports up to 350 pounds of networking equipment. It features a 90-degree swing-out hinge for easy access to cables and connections, heavy duty hinges and latches and six knock-outs in the top and bottom of the rear section for cable management flexibility. Ships fully assembled and ready to be installed.

Benefits:

Security & Protection

  • Locking doors and side panels prevent unauthorized access to equipment
  • 12 gauge rails provide a stable mounting structure
  • Doors are grounded to the cabinet frame
  • Conforms to UL standard 2416 for Audio/Video, Information and Communications Technology Equipment Cabinet, Enclosure and Rack Systems

Flexibility

  • Multiple cable entry options provide greater flexibility during installation
  • Doors and side panels are all removable for convenient access to equipment
  • Second pair of rails can be added to 24 in. deep models (2 pair of rails standard on 32 in. deep models)

High Capacity

  • Available in six sizes to fit in a variety of environments where space is limited
  • Adaptable for use in network, security and audio/visual installations

Key Features

  • Rear hinge allows main section to swing 90 degrees and disconnects from cabinet for easy mounting
  • Lace points to reduce clutter
  • Lockable acrylic front door is removable and reversible
  • 12 gauge steel mounting rails with 12-24 tapped holes and RU marking for easy equipment installation
  • Heavy-duty design allows for weight capacity of up to 350 lbs. (capacity varies by item)

Additional information

Weight 142.0 lbs
