H12B00 - H12B - 75 Ohm Analog Video Coax, RG-59, 23 AWG Str BC, 90% BC Braid, PVC Jkt

H12B00 – H12B – 75 Ohm Analog Video Coax, RG-59, 23 AWG Str BC, 90% BC Braid, PVC Jkt

Call for Price

Compare
SKU: H12B00 Categories: , , ,

Description

Product Overview

Suitable Applications: Standard analog video

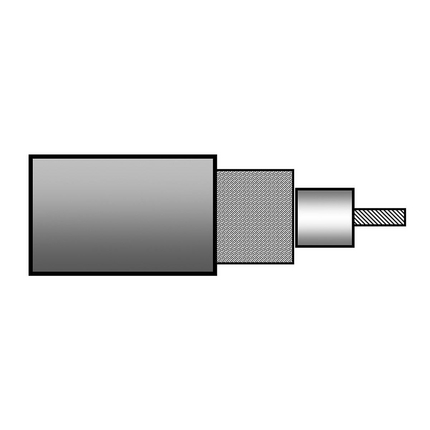

Construction Details

RG Type: Mini 59
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 24 AWG 7×0.20 mm 0.6 in BC – Bare Copper
Insulation
Material Nom. Insulation Diameter
PE – Polyethylene 3.5 mm (0.14 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 90%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 5.6 mm
Table Notes: According to European Standard EN 50290-2-20

Electrical Characteristics

Regularity of Impedance: Min. 40 dB
Return Loss (RL)
Frequency Min. Return Loss
5 – 30 MHz 20 dB
30 – 470 MHz 20 dB
470 – 862 MHz 18 dB
862 – 2150 MHz 16 dB
Attenuation
Frequency Nom. Attenuation
5 MHz 2.9 dB/100m
50 MHz 9.4 dB/100m
100 MHz 13.3 dB/100m
200 MHz 19 dB/100m
400 MHz 27.2 dB/100m
600 MHz 33.7 dB/100m
800 MHz 39.2 dB/100m
1000 MHz 44.1 dB/100m
1350 MHz 51.7 dB/100m
1600 MHz 56.7 dB/100m
1750 MHz 59.5 dB/100m
2150 MHz 66.5 dB/100m
2400 MHz 70.6 dB/100m
Electricals
Max. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
80 Ohm/km (24 Ohm/1000ft) 12.5 Ohm/km (3.81 Ohm/1000ft) 67 pF/m (20 pF/ft) 75 Ohm 66%
Screening
Frequency Min. Screening Attenuation
30 – 1000 MHz 50 dB

Mechanical Characteristics

Temperature
Operating Installation Storage
-15°C To +70°C -5°C To +50°C -15°C To +70°C
Bulk Cable Weight: 43 kg/km

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
CENELEC Compliance: EN 50117-1
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.200 Revision Date: 03-27-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
H12B00.022000 Beige Reel 2,000 m 8719605087799
