H106T00 - H106T00 - Analog Video, RG59/U Type, H106, 23 AWG Solid BC, Double TC Braids, PVC Jkt

H106T00 – H106T00 – Analog Video, RG59/U Type, H106, 23 AWG Solid BC, Double TC Braids, PVC Jkt

Call for Price

Compare
SKU: H106T00 Categories: , , ,

Description

Product Overview

Suitable Applications: Standard analog video

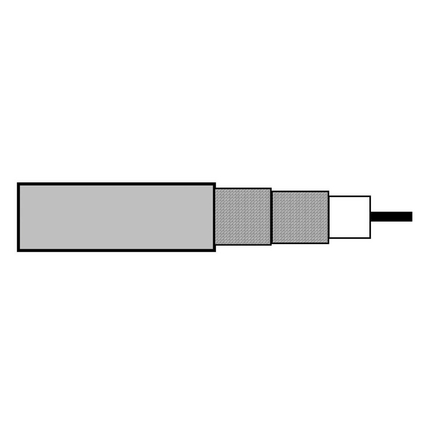

Construction Details

RG Type: 59
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 23 AWG Solid 0.58 mm BC – Bare Copper
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE – Polyethylene (Foam) 3.7 mm (0.15 in)
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Tinned Copper (TC) 92%
2 Braid Tinned Copper (TC) 92%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 6 mm
Table Notes: According to European Standard EN 50290-2-20

Electrical Characteristics

Regularity of Impedance: Min. 40 dB
Return Loss (RL)
Frequency Min. Return Loss
5 – 30 MHz 20 dB
30 – 470 MHz 20 dB
470 – 862 MHz 18 dB
Table Notes: In each frequency band, 3 peak values up to 4 dB lower are allowed
Attenuation
Frequency Nom. Attenuation
5 MHz 2.4 dB/100m
50 MHz 8 dB/100m
100 MHz 11.6 dB/100m
230 MHz 18.3 dB/100m
300 MHz 21.2 dB/100m
400 MHz 25 dB/100m
470 MHz 27.5 dB/100m
860 MHz 39.2 dB/100m
Table Notes: Max. attenuation 10% higher
Electricals
Max. Conductor DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
40 Ohm/km (12 Ohm/1000ft) 67 pF/m (20 pF/ft) 75 Ohm 66%

Mechanical Characteristics

Temperature
Operating Installation Storage
-15°C To +70°C -5°C To +50°C -15°C To +70°C
Bend Radius
Stationary Min.
30 mm (1.2 in)
Bulk Cable Weight: 58 kg/km

Standards and Compliance

Environmental Suitability: Indoor/Outdoor – Euroclass Eca
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
ISO/IEC Compliance: IEC 61196
CENELEC Compliance: EN 50117-1
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.195 Revision Date: 12-19-2022
