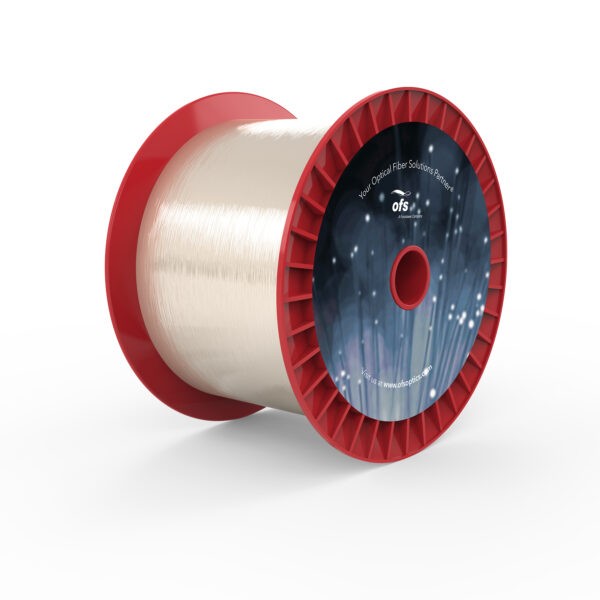

GyroSil® 1550 Rad-Hard PM Optical Fiber
Call for Price
Item Number
27304
27304
Description
GyroSil® 1550 Rad-Hard PM Optical Fiber
Description
Item Number
27304
27304
Description
GyroSil® 1550 Rad-Hard PM Optical Fiber
| Attenuation | @ 1550 nm, < 1.0 (dB/km) |
|---|---|
| Proof Test Level | 100 (kpsi) |
| Cladding Diameter | 80 ± 1 (µm) |
| Coating Diameter | 145 ± 7 (µm) |
| Cutoff Wavelength | < 1550 (nm) |
| Mode Field Diameter | @ 1550 nm, 8.9 ± 0.5 (µm) |
| Core Concentricity Error | <0.5 (µm) |
| Beat Length | @ 1550 nm, < 4 (mm) |
| Center Operating Wavelength | 1550 (nm) |
| h-parameter, shipping spool at room temperature | < 5 x 10-5 (1/m) |
