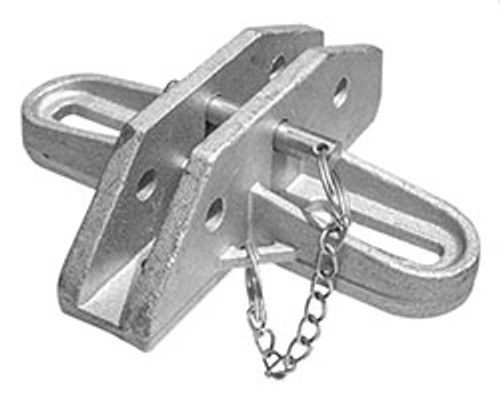

(Part Number: GMP74147) – 5 3/8″ x 6 1/4″ Cross Arm Bracket Adapter – Aerial Materials – GMP

Description

These rugged universal blocks feature high strength and low weight at a value price. With a working load limit of 2,500 lbs., they can be configured with 5 different mounting options. Permanently lubricated bearings provide long term durability and an extreme temperature operating range.

8.1 “ 13.0-lbs depending on configuration

Working Load Limit of 2,500 lbs.

7 Block (O.D.)

Double shielded, deep groove ball bearings

3 Sheave (rim width)

Permanently lubricated to withstand -5F to 250F

3-1/8 Width (throat)

Profile machined groove for concentricity

Cast from A356 Aluminum and heat treated

Cable Diameter Range [in]:
0.157-1.125

Cable Diameter Range [mm]:
4.0-28.6

Length [in]:
4.25

Shipping Method:
Parcel

Unit of Measure:
EA.

Weight [lb]:
5.000000

Width [in]:
31

Working Load Limit [lb]:
2500
