(Part Number: GMP74055) – E Cable Block With Halo – Aerial Materials – GMP

Description

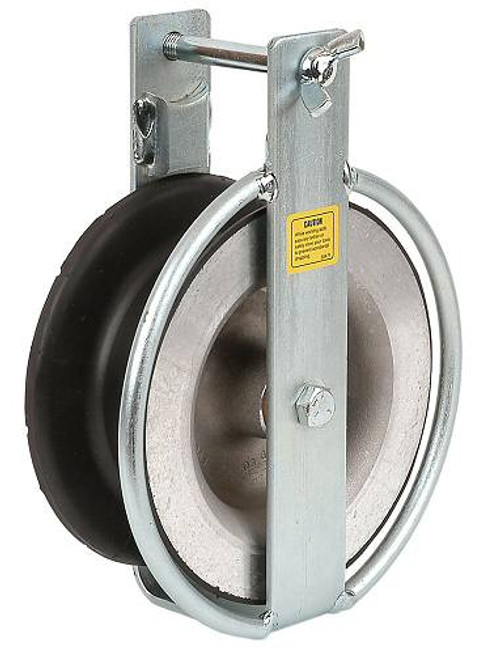

The Model E Cable Block is normally used for pulling in self support or pre-lashed cable and is mounted with either a B, C, D, E, or F Cable Block Frame at a pole. (See Cable Block Frames)

• Comprised of a U-shaped steel frame with a single, smooth rolling neoprene-covered 5 in. aluminum sheave
• Has a wing screw assembly used for attaching to the yoke of the cable block frames
• Integrated halo for added pulling line and cable safety

Note: The pulley of the E Cable Block should be clean and rotate freely. When necessary, remove the pulley from the support, clean the bearings and lubricate with a light grease.

Connection Type:
LC, SC-Simplex, SC-Duplex, MU, MT-RJ

Length [in]:
3407

Shipping Height [in]:
16

Shipping Length [in]:
5

Shipping Method:
parcel

Shipping Weight [lb]:
10

Shipping Width [in]:
5

Unit of Measure:
EA.

Weight [lb]:
10.000000

Weight [lb]:
10

Width [in]:
31
