  • Cable
Cable

Fiber indoor/outdoor cable – LightScope ZWP® Gel-filled loose tube – 4 fiber – Singlemode G.657.A1 – Meters jacket marking – Black jacket color – Dca flame rating 810010166/DB | C-004-DN-8F-M04BK/20G-PO01 – CommScope

Call for Price

Download Spec Sheet

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA
Portfolio CommScope®
Product Type Fiber indoor/outdoor cable
Product Series C-DN

General Specifications

Cable Type Central loose tube
Construction Type Non-armored
Subunit Type Gel-filled
Jacket Color Black
Jacket Marking Meters
Jacket Marking Method Inkjet
Jacket Marking Text OPTICAL CABLE COMMSCOPE ADSS-NOTKtcdD 4J7A1 (1×4)OF 1,5kN {Serial Number} MM/YYYY 1234 M
Subunit, quantity 1
Fibers per Subunit, quantity 4
Total Fiber Count 4

Dimensions

Buffer Tube/Subunit Diameter 2 mm | 0.079 in
Diameter Over Jacket 5.05 mm | 0.199 in

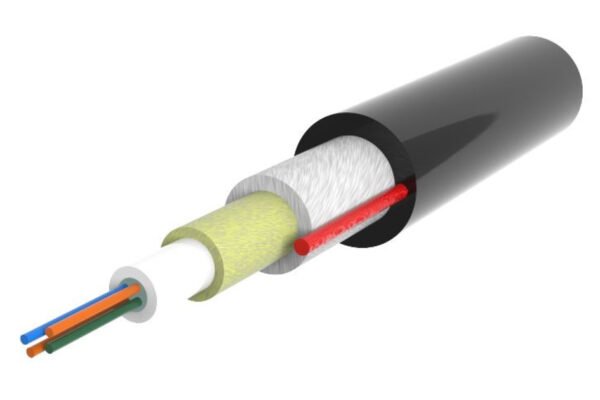

Representative Image

Click on image to enlarge.


Mechanical Specifications

Minimum Bend Radius, loaded 25 mm | 0.984 in
Minimum Bend Radius, unloaded 25 mm | 0.984 in
Tensile Load, long term, maximum 400 N | 89.924 lbf
Tensile Load, short term, maximum 1500 N | 337.214 lbf
Cable Crush Resistance, maximum 15 N/mm | 85.652 lb/in
Compression 15 N/mm | 85.652 lb/in
Compression Test Method IEC 60794-1-2 E3
Impact 3 N-m | 26.552 in lb
Impact Test Method IEC 60794-1 E4
Twist 5 cycles
Twist Test Method IEC 60794-1 E7

Optical Specifications

Fiber Type G.657.A1

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.35 dB/km @ 1,300 nm

Environmental Specifications

Documentation & Downloads

Building Information Modeling (BIM) Objects

Revit BIM Models

Declaration of Performance

EN50575 DoP EuroClass Dca s1a d0 a1 (English)

Product Compliance Documentation

Global Trade Data

Statement of Compliance RoHS/REACH

Product Specification

810010166/DB Product specifications

810010166/DB Product specifications (Comprehensive)

Visio Stencil

Visio Stencil Resources

Warranty

CommScope Limited Product Warranty

Building Information Modeling (BIM) Objects

Revit BIM Models

Declaration of Performance

EN50575 DoP EuroClass Dca s1a d0 a1 (English)

Product Compliance Documentation

Global Trade Data

Statement of Compliance RoHS/REACH

Product Specification

810010166/DB Product specifications

810010166/DB Product specifications (Comprehensive)

Visio Stencil

Visio Stencil Resources

Warranty

CommScope Limited Product Warranty

Brand

CommScope

Sign Up For Newsletters

Get E-mail updates about our latest shop and Special Offers

AMERICAN TELE DATA

American Tele Data Is Your One Source For All Your Fiber Optic-Data-Network Equipment-Wireless- Ethernet Switch-OEM & Telecommunications Needs

855 - 848 - Data

855 - 40 - Fiber

Information

  • About Us
  • Privacy Policy
  • Returns Policy
  • Shipping Policy
  • Dropshipping

Account

  • My Orders
  • My Wishlist
  • Account details
  • Track My Orders

Quick Links

  • Home
  • Join Mailing List
  • Fiber To Th e Home
  • Government
  • Contact Us

Categories

  • adsl-dsl-vdsl
  • Battery Backup Systems
  • Batteries
  • Bandwidth Management
  • Bend Insensitive Fiber Cable

Copyright 2025. All Rights Reserved

  • Privacy Policy
  • Terms and Conditions
  • Returns Policy
You were not leaving your cart just like that, right?

You were not leaving your cart just like that, right?

Enter your details below to save your shopping cart for later. And, who knows, maybe we will even send you a sweet discount code :)

Installation temperature -10 °C to +70 °C (+14 °F to +158 °F)
Operating Temperature
 -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards IEC 60794-1-2
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s1a
EN50575 CPR Cable EuroClass Droplets Rating d0
EN50575 CPR Cable EuroClass Acidity Rating
