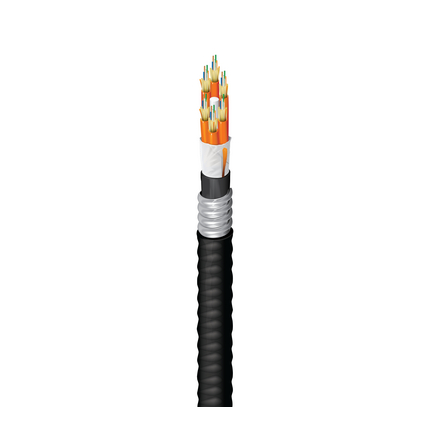

Product Overview
| Product Category: |
Fiber Distribution Cable |
| Suitable Applications: |
Premise Backbone |
Fiber Specifications
| Fiber Core Diameter: |
62.5/125 µm |
| Buffer Material: |
PVC – Polyvinyl Chloride |
| Fiber Color Coding: |
TIA-598-D |
Cable Construction
| Number of Active Subunits: |
6 |
| Subunit Diameter: |
0.180 in (4.6 mm) |
| Subunit Strength Members: |
Waterblocking aramid yarns |
| Central Strength Member: |
Upjacketed GRP |
| Core Wrap: |
Waterblocking and nomex tape |
| Cable Core Waterblocking: |
Waterblock Tape |
Inner Jacket Specifications
| Material: |
PVC – Polyvinyl Chloride |
| Nom. Diameter: |
0.632 in (16.1 mm) |
Armor Specifications
| Armor Type and Material: |
AIA – Aluminum Interlock Armor |
Outer Jacket Specifications
| Jacket Material: |
PVC – Polyvinyl Chloride |
| Nom. Diameter: |
0.986 in (25.0 mm) |
| Wavelength |
850 nm |
1300 nm |
| Max. Attenuation |
3.5 dB/km |
1.25 dB/km |
| 1 Gigabit Ethernet Performance |
300 m |
550 m |
| 10 Gigabit Ethernet Performance |
33 m |
— |
| Min. Restricted Mode Launch |
220 MHz.km |
500 MHz.km |
| Min. Overfilled Launch (OFL) Bandwidth |
200 MHz.km |
500 MHz.km |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
20x Cable OD |
| Min. Bend Radius During Operation: |
10x Cable OD |
| Max. Tensile Strength During Installation: |
2670 N (600 lbf) |
| Max. Tensile Strength During Operation: |
800 N (180 lbf) |
| Crush Resistance: |
440 N/cm |
| Bulk Cable Weight: |
303 lbs/kft (451 kg/km) |
Temperature Range
| Installation Temperature Range: |
0°C to +60°C |
| Operating Temperature Range: |
-40°C to +70°C |
| Storage Temperature Range: |
-40°C to +70°C |
Standards and Compliance
| Environmental Suitability: |
Indoor/Outdoor, Sunlight Resistance, Burial |
| Sustainability: |
CA Prop 65, Product Lens, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire: |
OFCP, FT6 |
| ICEA Compliance: |
S-104-696 |
| European Directive Compliance: |
EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
| Update and Revision: |
Revision Number: 0.84 Revision Date: 11-09-2022 |
Part Numbers
| Item # |
Color |
Putup Type |
UPC |
| FD1D036AJ |
Black |
Reel |
612825374312 |
