FASTPASS RJ45 Kit (PRO-FA-KIT)
Call for Price

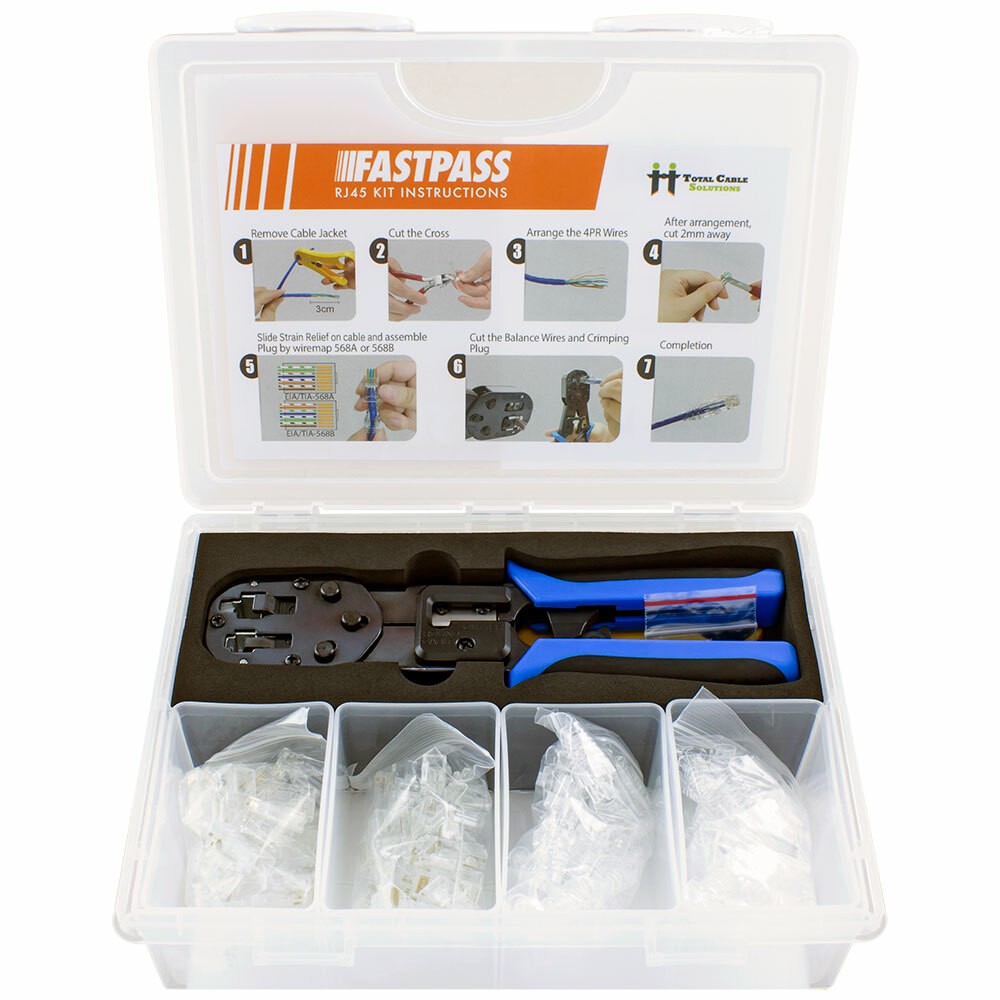

FASTPASS™ RJ45 tool kit includes:
25 FASTPASS™ RJ45 CAT6 Connectors
25 FASTPASS™ RJ45 CAT5e Connectors
50 FASTPASS™ RJ45 Strain Reliefs
FASTPASS™ RJ45 Tool
Cable Stripper
2-minute demonstration of RJ45 plug installation on copper patch cords by our own Tom Hodson, voting member on the TIA Engineering Committee TR-42 and Solution Architect at Lynn/Total Cable Solutions.
Datasheet
ELECTRICAL
UL APPLICATIONS: 250 VOLTS AC MAX. AT 2 AMPS
DIELECTRIC WITHSTANDING VOLTAGE: 1000 VOLTS AC. 60 SEC
INSULATION RESISTANCE: 500 MΩ
CONTACT RESISTANCE: 20mΩ MAX
MECHANICAL
STRAIN RELIEF: 20 POUND MIN
DURABILITY: 1200 MATING CYCLES
MATERIAL
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2
COLOR: TRANSPARENT
CONTACT BLADE: COPPER ALLOY
GOLD PLATING: 50µm,
USAGE
SUITABLE FOR STRANDED & SOLID WIRE 23AWG – 26 AWG
(designed for wire OD from Ø 0.93 ~ Ø1.04)
COMPLIANCE
CAT6/CAT5e transmission performance in compliance with ANSI/TIA
RoHS compliant
