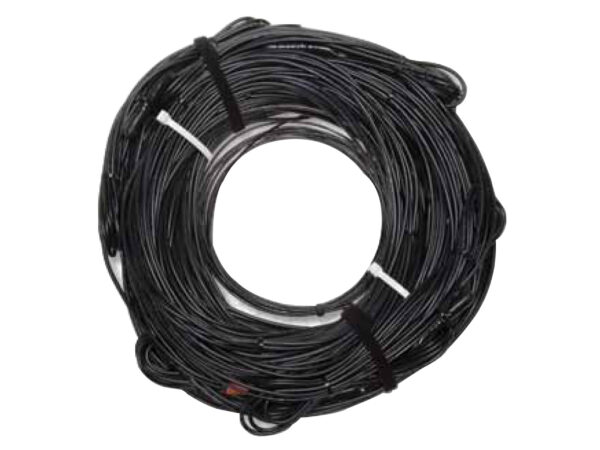

EZ-Bend® Multifiber Drop Bundle
Call for Price
Item Number
EZ-Bend® Multifiber Drop Bundle
EZ-Bend® Multifiber Drop Bundle
Description
EZ-Bend® Multifiber Drop Bundle
Applications
Indoor/Outdoor
Features and Benefits
- Available in 3.0 and 4.8 diameter cordages, as indoor/outdoor, riser, plenum, or low-smoke, zero-halogen constructions
- Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 5 mm fiber bend radius
- Solid construction fiber with macrobending performance far better than ITU G.657.B3 requirements
- Backwards compatible with installed G.652.D fibers
- Available as single or double ended SCA terminated cables with 0.25 dB insertion loss and -55 dB return loss
- Ruggedized cords designed to allow common stapling methods
- Ideal for in-residence wiring and difficult installation routes in MDU overbuilds
- No extra steps to install bend limiters, conduits, or raceways
- Conforms to building; slack fits in small storage spaces
- Fast, easy, low-loss splicing to G.652.D fiber with existing core and clad aligned splice equipment
Description
Item Number
EZ-Bend® Multifiber Drop Bundle
EZ-Bend® Multifiber Drop Bundle
Description
EZ-Bend® Multifiber Drop Bundle
Applications
Indoor/Outdoor
Features and Benefits
- Available in 3.0 and 4.8 diameter cordages, as indoor/outdoor, riser, plenum, or low-smoke, zero-halogen constructions
- Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 5 mm fiber bend radius
- Solid construction fiber with macrobending performance far better than ITU G.657.B3 requirements
- Backwards compatible with installed G.652.D fibers
- Available as single or double ended SCA terminated cables with 0.25 dB insertion loss and -55 dB return loss
- Ruggedized cords designed to allow common stapling methods
- Ideal for in-residence wiring and difficult installation routes in MDU overbuilds
- No extra steps to install bend limiters, conduits, or raceways
- Conforms to building; slack fits in small storage spaces
- Fast, easy, low-loss splicing to G.652.D fiber with existing core and clad aligned splice equipment
| Fiber Count | 5, 6 or 12 |
|---|---|
| Cable Type | Low-Smoke, Zero-Halogen, Riser |
| Indoor or I/O | Indoor/Outdoor |
| Mechanical Rating | Telcordia GR-409, ICEA S-83-596 compliant |
| Flame Spread Rating | Non-Halogen: IEC 60332-3C and IEC 61034-2 Compliant, Plenum: NFPA 262 (UL 910) Compliant, Riser: UL 1666 Compliant |
| Connector Ends | SCA |
| Cable Characteristics | AccuDRY® Indoor/Outdoor Cables in 4.8 and 3.0 mm cordages, as riser, plenum, or low-smoke, zero-halogen |
