EZ-Bend® 4.8 & 3.0 Ruggedized Cables

Description
EZ-Bend® 4.8 & 3.0 Ruggedized Cables

Applications
FTTx, Indoor/Outdoor
Features and Benefits

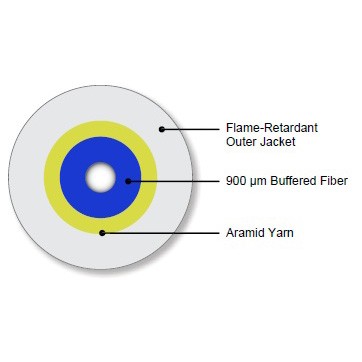

• 3.0 and 4.8 ruggedized cordage
• Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 5 mm fiber bend radius
• Less than 0.3 dB macrobending attenuation at 1550 nm when subjected to MDU Simulation Test called out by Verizon TPR.9424 FOC Document
• Sold construction fiber with macrobending performance far better than ITU G.657B requirements
• Backward compatible with installed G.652D fibers
• Conform to UL® Riser and Plenum fire ratings
• Compliant with Telcordia 409 & ICEA S-83-596 requirements
• Dry water-blocked core to protect against water ingress
• Reinforced solid jacket construction naturally limits cable bending to control macrobending attenuation and protect fiber reliability
• Staple friendly
• MDU and In-Home Optimized
• Faster, easier installation
• Compact installation and storage
• Fast, easy low-loss splicing
• Familiar, standard connector termination
• Familiar connector endface cleaning
• Greener solution
