Description

Overview

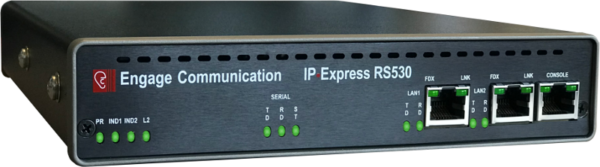

IP•Express RS530 is a Wide Area Network solution that bridges (1 or 2) Ethernet Packets connections or routes (1 or 2) Internet Protocol connections through (1 or 2) High Speed RS530 WAN interfaces that can be clocked and configured Data at rates from 2.4 Kilobits per second to 16 million bits per second. The RS530 WAN ports support Point to Point and Frame Relay Wide Area Networking Protocols with 24/7 proven interoperability.

IP•Express RS530 are used extensively with Wide Area Networks for high performance branch office connectivity and Internet access. Internet Service Providers deploy the IP•Express RS530 as a customer premise solution. Corporations and Government agencies select the IP•Express RS530 for its ease of installation and reliability.

The IP•Express RS530 is a very reliable, high performance and cost effective IP WAN Router and Ethernet Bridge for interconnecting remote LANs and for shared high performance Internet Access. IP•Express RS530 is great for:

• Branch Office Connections        • Shared Internet Access
• Education District Networking   • Multimegabyte File Transfers
• Ethernet to RS530 Conversion

Bridge
The IP•Express RS530 in Bridge mode, is 100% protocol independent. Bridging TCP/IP, DecNet,NetBEUI, or any Ethernet protocol across a synchronous serial RS530 WAN interface.

Router
The IP•Express RS530 in Route mode, fully complies with Internet Protocol routing for highperformance Branch Office connectivity.

+

Network Security  is provided with Full On Source, Destination Address; Port and Flag IP Packet filtering. Interconnectivity is able to be selectively controlled at the network, device and application layers.

Management of the IP•Express RS530 is accomplished with a Command Line Interface that is accessed through a Console or Telnet connection. Templates of the most common configuration provide for an Edit and Paste configuration. SNMP MIB I and II support is a standard feature.

Rack Mount Kit

The IP•Express products are easily installed in 19″ and 23″ racks with the Rack Mount Kit. Easy access to both front and rear sides facilitates technician maintenance procedures.

Applications

+

The IP•Express RS530 and the IP•Tube RS530 HS, whose synchronous serial interfaces are configurable as DCE or DTE, provides for the leveraging of existing synchronous serial bulk rate encryptors such as; KIV-7, KIV-7M, KIV-19, OMNI, and KG-84. The IP•Tube RS530 HS encapsulates synchronous serial data from Data Terminal or Communication Equipment into IP packets. These IP packets are sent to a remote IP•Tube RS530HS where the serial data is de-encapsulated and synchronously clocked into the remote Data Equipment. The IP connection provides for the transparent interconnection of Synchronous Serial Data Equipment via LANs, WANs, MANs, Satellite and Wireless Ethernet. Configured Data rates from 2.4 Kilobits per second to 16 Megabits per second.

Once the IP packets are converted back to serial data and decrypted by the serial bulk rate encryptor, the IP•Express RS530 will bridge or route the decrypted serial data across any ethernet or internet protocol, allowing for a tactical baseband network.

+

Two T1 Inverse Packet Multiplexer

IP•Express RS530 is a high performance, bandwidth scalable, IP WAN router. The RS530 port is able to interconnect to remote locations at 2 Mbps. Standards based WAN protocols, PPP, Multilink PPP, and Frame Relay, ensure interoperability.

MPEG IP Video Redundancy Switch

REDundant IP Video configuration automatically switches from the Primary to a Secondary Encoder’s IP Video Stream for mission critical broadcasts and is available with the IP•Express RS530-IPM-RED. A one second absence of IP packets from the Primary Encoder results in the switch to the Secondary Encoder. The WAN bandwidth is reserved for a single feed.

MPEG IP Multicast Streaming Video

IP•Express RS530-IPM models deliver MPEG IP Streaming Video over Inverse Packet Multiplexed RS530s. The Inverse Packet Multiplexer provides the bandwidth necessary for the delivery of broadcast quality video feeds for a single MPEG Video. IP Multicast is a standard feature of the IP•Express RS530 and is utilized to distribute MPEG video simultaneously to multiple decoders.
