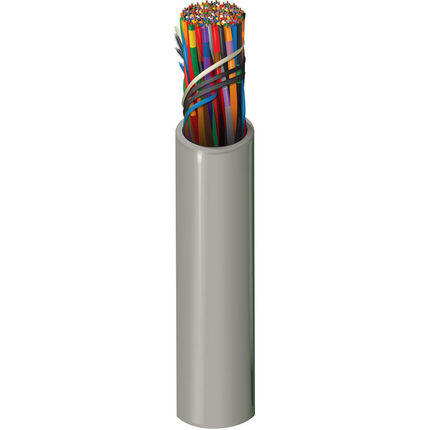

DPLN50 - Category 3 Backbone Cable, 50 Pair, U/UTP, CMP

DPLN50 – Category 3 Backbone Cable, 50 Pair, U/UTP, CMP

Call for Price

Compare
SKU: DPLN50 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Backbone Cable, Ethernet 10BASE-T, Analog Phone, FAX

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 AWG Solid BC – Bare Copper 50
Insulation
Material Color Code
PVC – Polyvinyl Chloride Western Electric (Non-Striped) Bound in 25 Pair Sub-Units, Binder 1: Blue/White, Binder 2: Orange/White
Outer Jacket
Material Material Trade Name Nom. Diameter Ripcord
PVC – Polyvinyl Chloride Flamarrest® 0.540 in (13.7 mm) Yes

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
16 MHz 543 ns/100m 45 ns/100m 61%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance [Ohm]
0.772 2.2 dB/100m 47.0 43.0 50.1 46.1
1 2.6 dB/100m 45.0 41.0 47.8 43.8 12.0 100 ± 15
4 5.6 dB/100m 36.0 32.0 36.0 32.0 12.0 100 ± 15
8 8.5 dB/100m 31.0 28.0 28.3 24.3 12.0 100 ± 15
10 9.7 dB/100m 30.0 26.0 26.2 22.3 12.0 100 ± 15
16 13.1 dB/100m 27.0 23.0 20.1 16.1 10.0 100 ± 15
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -30°C To +60°C 0°C To +50°C -30°C To +60°C
Bend Radius
Stationary Min. Installation Min.
5.5 in (140 mm) 11.0 in (279 mm)
Max. Pull Tension: 300 lbs (140 kg)
Bulk Cable Weight: 205 lbs/1000ft

Standards and Compliance

Environmental Suitability: Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: CMP
CEC / C(UL) Compliance: CMP
ICEA Compliance: S-90-661
NEMA Compliance: NEMA WC-63.1
Data Category: Category 3
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 3
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: DIW50

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings.

History

Update and Revision: Revision Number: 0.461 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
DPLN50 732S1007 Gray
DPLN50 732CUT Olive Cut to Length 612825061007
DPLN50 732CUT Olive Cut to Length 1 ft 612825061007
