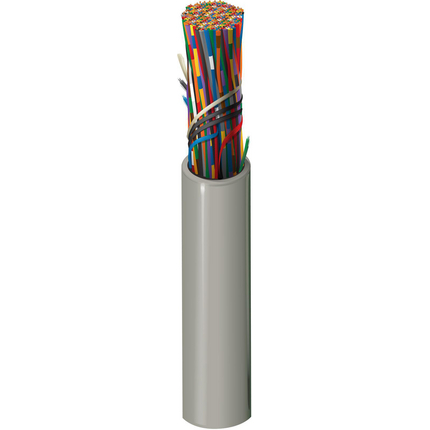

DPLN300 - CAT3 Backbone, 300pr, UTP, LS-PVC Jkt, CMP

DPLN300 – CAT3 Backbone, 300pr, UTP, LS-PVC Jkt, CMP

Call for Price

Compare
SKU: DPLN300 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Backbone Cable

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
24 Solid BC – Bare Copper 300
Conductor Count: 600
Total Number of Pairs: 300
Insulation
Material
PVC – Polyvinyl Chloride
Bonded-Pair: N/A
Color Chart
Number Color
1 White/Blue & Blue/White
2 White/Orange & Orange/White
3 White/Green & Green/White
4 White/Brown & Brown/White
5 White/Slate & Slate/White
6 Red/Blue & Blue/Red
7 Red/Orange & Orange/Red
8 Red/Green & Green/Red
9 Red/Brown & Brown/Red
10 Red/Slate & Slate/Red
11 Black/Blue & Blue/Black
12 Black/Orange & Orange/Black
13 Black/Green & Green/Black
14 Black/Brown & Brown/Black
15 Black/Slate & Slate/Black
16 Yellow/Blue & Blue/Yellow
17 Yellow/Orange & Orange/Yellow
18 Yellow/Green & Green/Yellow
19 Yellow/Brown & Brown/Yellow
20 Yellow/Slate & Slate/Yellow
21 Violet/Blue & Blue/Violet
22 Violet/Orange & Orange/Violet
23 Violet/Green & Green/Violet
24 Violet/Brown & Brown/Violet
25 Violet/Slate & Slate/Violet
Group One Binder White/Blue
Group Two Binder White/Orange
Group Three Binder White/Green
Group Four Binder White/Brown
Group Five Binder White/Slate
Group Six Binder Red/Blue
Group Seven Binder Red/Orange
Group Eight Binder Red/Green
Group Nine Binder Red/Brown
Group Ten Binder Red/Slate
Group Eleven Binder Black/Blue
Group Twelve Binder Black/Orange
Color Chart 2
Number Color
1 Blue/White
2 Orange/White
3 Green/White
4 Brown/White
5 Gray/White
6 Blue/Red
7 Orange/Red
8 Green/Red
9 Red/Brown
10 Red/Gray
11 Black/Blue
12 Black/Orange
Outer Jacket
Material Material Trade Name Nominal Diameter Ripcord
PVC – Polyvinyl Chloride Flamarrest® 1.350 in Yes

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
16 MHz 543 ns/100m 45 ns/100m 61%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance
0.772 MHz 2.2 dB/100m 47.0 dB 43.0 dB 50.1 dB 46.1 dB
1 MHz 2.6 dB/100m 45.0 dB 41.0 dB 47.8 dB 43.8 dB 12.0 dB 100 ± 15 Ohm
4 MHz 5.6 dB/100m 36.0 dB 32.0 dB 36.0 dB 32.0 dB 12.0 dB 100 ± 15 Ohm
8 MHz 8.5 dB/100m 31.0 dB 28.0 dB 28.3 dB 24.3 dB 12.0 dB 100 ± 15 Ohm
10 MHz 9.7 dB/100m 30.0 dB 26.0 dB 26.2 dB 22.3 dB 12.0 dB 100 ± 15 Ohm
16 MHz 13.1 dB/100m 27.0 dB 23.0 dB 20.1 dB 16.1 dB 10.0 dB 100 ± 15 Ohm
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: 0°C To +50°C
Non-UL Temp Rating: +60°C
Storage Temperature Range: -30°C To +60°C
Operating Temperature Range: -30°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 1220 lbs/1000ft
Max. Pull Tension: 1800 lbs
Min. Bend Radius During Installation: 27.0 in
Min. Bend Radius/Minor Axis: 13.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
CPR Euroclass: Eca
Data Category: Category 3
ANSI Compliance: S-90-661-2012 Category 3, ANSI/NEMA WC-63.1 Category 3
TIA/EIA Compliance: ANSI/TIA-568-C.2 Category 3

Applicable Environmental and Other Programs

Environmental Space: Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: No
Suitability – Burial: No
Suitability – Hazardous Locations: No
Suitability – Indoor: Yes
Suitability – Non-Halogenated: No
Suitability – Oil Resistance: No
Suitability – Outdoor: No
Suitability – Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum (UL 910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: DIW300
Variants
Item # Color Put-Up Type Length UPC
DPLN300 732CUT Olive Cut to Length 612825061038
DPLN300 732CUT Olive Cut to Length 1 ft 612825061038

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings.

History

Update and Revision: Revision Number: 0.410 Revision Date: 12-19-2022
