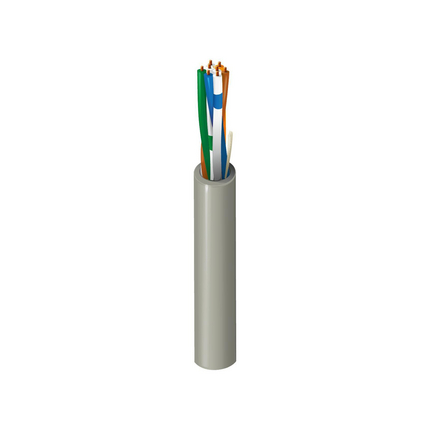

DIW4 - Cat 3 Cable, U/UTP, PVC, 4 Pair, AWG 24, Riser

DIW4 – Cat 3 Cable, U/UTP, PVC, 4 Pair, AWG 24, Riser

Call for Price

Compare
SKU: DIW4 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
24 Solid BC – Bare Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material
PVC – Polyvinyl Chloride
Bonded-Pair: N/A
Color Chart
Number Color
1 White/Blue & Blue
2 White/Orange & Orange
3 White/Green & Green
4 White/Brown & Brown
Outer Jacket
Material Nominal Diameter Ripcord
PVC – Polyvinyl Chloride 0.169 in Yes

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
16 MHz 543 ns/100m 45 ns/100m 68%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance
0.772 MHz 2.2 dB/100m 47.0 dB 43.0 dB 50.1 dB 46.1 dB
1 MHz 2.6 dB/100m 45.0 dB 41.0 dB 47.8 dB 43.8 dB 12.0 dB 100 ± 15 Ohm
4 MHz 5.6 dB/100m 36.0 dB 32.0 dB 36.0 dB 32.0 dB 12.0 dB 100 ± 15 Ohm
8 MHz 8.5 dB/100m 31.0 dB 28.0 dB 28.3 dB 24.3 dB 12.0 dB 100 ± 15 Ohm
10 MHz 9.7 dB/100m 30.0 dB 26.0 dB 26.2 dB 22.3 dB 12.0 dB 100 ± 15 Ohm
16 MHz 13.1 dB/100m 27.0 dB 23.0 dB 20.1 dB 16.1 dB 10.0 dB 100 ± 15 Ohm
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: -30°C To +60°C
UL Temp Rating: 60°C
Storage Temperature Range: -30°C To +60°C
Operating Temperature Range: -30°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 16 lbs/1000ft
Max. Pull Tension: 25 lbs
Min. Bend Radius During Installation: 1.75 in
Min. Bend Radius/Minor Axis: 1.0 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMR
CPR Euroclass: Eca
Data Category: Category 3
ANSI Compliance: S-90-661-2012 Category 3, ANSI/NEMA WC-63.1 Category 3
TIA/EIA Compliance: ANSI/TIA-568-C.2 Category 3
Third Party Performance Verification: Category 3

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: No
Suitability – Burial: No
Suitability – Hazardous Locations: No
Suitability – Indoor: Yes
Suitability – Non-Halogenated: No
Suitability – Oil Resistance: No
Suitability – Outdoor: No
Suitability – Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT4
UL Flammability: UL 1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: DFLEX4

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
DIW4 732B1000 Olive 1,000 ft 612825060840
DIW4 732B1000 Olive 1,000 ft 612825060840
DIW4 732B1000B Olive 1,000 ft
DIW4 732U1000 Olive UnReel 1,000 ft 612825060833
DIW4 732U1000 Olive UnReel 1,000 ft 612825060833
DIW4 732U1000B Olive UnReel 1,000 ft
DIW4 732U1500 Olive UnReel 1,500 ft 612825060857
DIW4 732U1500 Olive UnReel 1,500 ft 612825060857
DIW4 732U1500B Olive UnReel 1,500 ft

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings.

History

Update and Revision: Revision Number: 0.477 Revision Date: 12-12-2023
