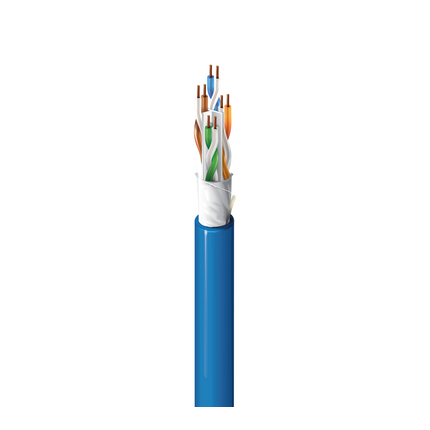

DAUR - Category 6A Cable, 4 Pair, U/UTP, CMR

DAUR – Category 6A Cable, 4 Pair, U/UTP, CMR

Call for Price

Compare
SKU: DAUR Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, Ethernet 10GBASE-T

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4
Insulation
Material Color Code
PO – Polyolefin White & Blue, White & Orange, White & Green, White & Brown
Outer Jacket
Separator Material Nom. Diameter Ripcord
Center Member (Patented T-Spline®), EquiBlock™ Barrier Technology PVC – Polyvinyl Chloride 0.260 in (6.60 mm) Yes
Overall Cable Diameter (Nominal): 0.260 in (6.60 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km (25 Ohm/1000ft) 45 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100ft 70%
Voltage
UL Voltage Rating
300 V (CMR)

Mechanical Characteristics

Temperature
UL Temperature Operating Storage
75°C -20°C To +75°C -20°C To +75°C
Bend Radius
Stationary Min.
1 in (25 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 31 lbs/1000ft (46 kg/km)

Standards and Compliance

Environmental Suitability: Indoor – Riser, Indoor
Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMR
ICEA Compliance: S-116-732
IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance: ANSI/NEMA WC-66
Data Category: Category 6A
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: DAUP

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision: Revision Number: 0.14 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length
DAUR 0101000 Black Reel 1,000 ft
DAUR 0061000 Blue Reel 1,000 ft
DAUR 0081000 Gray Reel 1,000 ft
DAUR 0051000 Green, Dark Reel 1,000 ft
DAUR 0031000 Orange Reel 1,000 ft
DAUR 0021000 Red Reel 1,000 ft
DAUR 0091000 White Reel 1,000 ft
DAUR 0041000 Yellow Reel 1,000 ft
