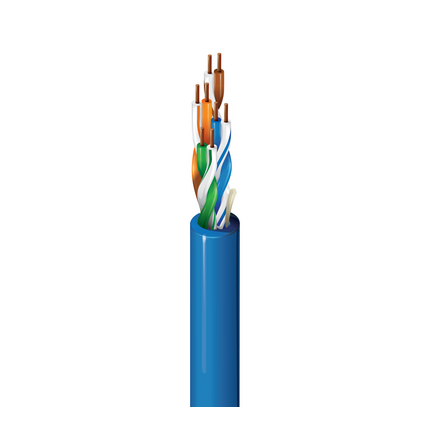

D6UP - Category 6 Cable, 4 Pair, U/UTP, CMP

D6UP – Category 6 Cable, 4 Pair, U/UTP, CMP

Call for Price

Compare
SKU: D6UP Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4
Insulation
Material Color Code
PO+FEP – Polyolefin + Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Jacket
Material Material Trade Name Nom. Diameter Ripcord
PVC – Polyvinyl Chloride Flamarrest® 0.224 in (5.69 mm) Yes
Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
78 Ohm/km 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
537.6 ns/100m 35 ns/100m 72%
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.0 in (25 mm) 2.25
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 25 lbs/1000ft

Standards and Compliance

Environmental Suitability: PlenumIndoor, Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum)
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: CMP
CEC / C(UL) Compliance: CMP
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6
Third Party Performance Verification: Category 6
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: D6UR

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision: Revision Number: 0.79 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length
D6UP 010U1000 Black UnReel 1,000 ft
D6UP D15U1000 Blue UnReel 1,000 ft
D6UP 008U1000 Gray UnReel 1,000 ft
D6UP 005U1000 Green, Dark UnReel 1,000 ft
D6UP 003U1000 Orange UnReel 1,000 ft
D6UP 002U1000 Red UnReel 1,000 ft
D6UP 007U1000 Violet UnReel 1,000 ft
D6UP 009U1000 White UnReel 1,000 ft
D6UP 004U1000 Yellow UnReel 1,000 ft
