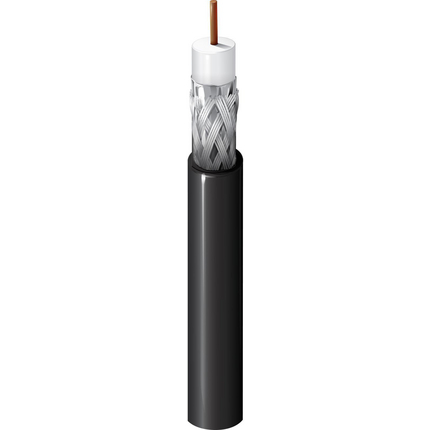

CX9A2 - CX9A2 - Broadband Coax 9, 17 AWG Solid BC, Foil + 70% BC Braid, PVC Jkt

CX9A2 – CX9A2 – Broadband Coax 9, 17 AWG Solid BC, Foil + 70% BC Braid, PVC Jkt

Call for Price

Compare
SKU: CX9A2 Categories: , ,

Description

Product Overview

Suitable Applications: Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Construction Details

RG Type: 6
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 17 AWG Solid 1.13 mm BC – Bare Copper
Insulation
Material Nom. Insulation Diameter
PE – Polyethylene (Foam) 4.8 mm (0.19 in)
Table Notes: Gas Injected
Outer Shield
Layer Outer Shield Type Material Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) 100%
2 Braid Tinned Copper (TC) 70%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 6.8 mm

Electrical Characteristics

Regularity of Impedance: 40 dB
Return Loss (RL)
Frequency Min. Return Loss
5-470 MHz 23 dB
470-1000 MHz 20 dB
1000-2000 MHz 18 dB
2000-3000 MHz 16 dB
Table Notes: Max. 3 peak values 4 dB lower than specified
Attenuation
Frequency Nom. Attenuation
5 MHz 1.5 dB/100m
50 MHz 4.0 dB/100m
100 MHz 5.7 dB/100m
200 MHz 8.2 dB/100m
400 MHz 11.8 dB/100m
600 MHz 14.7 dB/100m
800 MHz 17.2 dB/100m
1000 MHz 19.4 dB/100m
1350 MHz 23.0 dB/100m
1750 MHz 27 dB/100m
2000 MHz 28.7 dB/100m
2150 MHz 30 dB/100m
2400 MHz 32 dB/100m
3000 MHz 36 dB/100m
Electricals
Max. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
19 Ohm/km (5.8 Ohm/1000ft) 14 Ohm/km (4.3 Ohm/1000ft) 51 pF/m (16 pF/ft) 75 Ohm 87%
Screening
Frequency Min. Screening Attenuation
30-1000 MHz 85 dB
1000-2000 MHz 75 dB
2000-3000 MHz 65 dB
Screening Class: A

Mechanical Characteristics

Temperature
Operating Storage
-40°C To +70°C -40°C To +70°C
Bulk Cable Weight: 49 kg/km

Standards and Compliance

Environmental Suitability: Indoor/Outdoor
CENELEC Compliance: EN 50117-1

History

Update and Revision: Revision Number: 0.155 Revision Date: 04-08-2022
