CX3C2 - CX3C2 - Broadband Coax 3, 8 AWG Solid BC, Foil + 60% BC Braid, LSZH Jkt

CX3C2 – CX3C2 – Broadband Coax 3, 8 AWG Solid BC, Foil + 60% BC Braid, LSZH Jkt

Call for Price

Compare
SKU: CX3C2 Categories: , , ,

Description

Product Overview

Suitable Applications: Broadband, Cable Television (CATV)

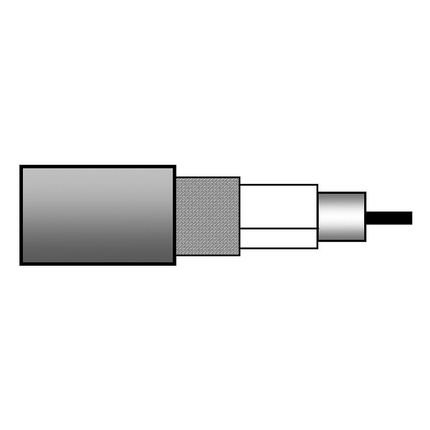

Construction Details

Series Type: CATV-Trunk Type
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 8 AWG Solid 3.38 mm BC – Bare Copper
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE – Polyethylene (Foam) 14.9 mm (0.587 in)
Table Notes: Centricity min. 85%
Outer Shield
Layer Outer Shield Type Material Coverage
1 Tape Bare Copper (BC) 100%
2 Braid Bare Copper (BC) 55%
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 19.8 mm
Table Notes: According to European Standard EN 50290-2-20

Electrical Characteristics

Regularity of Impedance: Min. 46 dB
Return Loss (RL)
Frequency Min. Return Loss
5 – 30 MHz 26 dB
30 – 470 MHz 26 dB
470 – 862 MHz 23 dB
862 – 2400 MHz 18 dB
Table Notes: In each frequency band, 3 peak values up to 4 dB lower are allowed
Attenuation
Frequency Nom. Attenuation
5 MHz 0.4 dB/100m
50 MHz 1.3 dB/100m
100 MHz 1.8 dB/100m
200 MHz 2.6 dB/100m
400 MHz 3.9 dB/100m
600 MHz 4.8 dB/100m
800 MHz 5.7 dB/100m
1000 MHz 6.5 dB/100m
1350 MHz 7.7 dB/100m
1750 MHz 9 dB/100m
2150 MHz 10.2 dB/100m
2400 MHz 10.9 dB/100m
Table Notes: Max. attenuation 10% higher
Electricals
Max. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
1.9 Ohm/km (0.58 Ohm/1000ft) 2.6 Ohm/km (0.79 Ohm/1000ft) 54 pF/m (16 pF/ft) 75 Ohm 84%
Transfer Impedance
Max. Transfer Impedance
Max. 2.5 mOhm/m
Typ. 1.1 mOhm/m
Screening
Frequency Min. Screening Attenuation
30 – 1000 MHz 95 dB
Screening Class: A+

Mechanical Characteristics

Temperature
Operating Installation Storage
-30°C To +70°C -5°C To +50°C -30°C To +70°C
Bend Radius
Stationary Min.
200 mm (7.9 in)
Max. Pull Tension: 1200 N (270 lbf)
Bulk Cable Weight: 400 kg/km

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Dca
Flammability / Reaction to Fire: IEC 60332-1-2, IEC 60332-3-24
CPR Compliance: CPR Euroclass: Dca-s2,d2,a1
ISO/IEC Compliance: IEC 61196, IEC 61034-2 – Smoke Density Min Transmittance = 60%
CENELEC Compliance: EN 50117-1
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.221 Revision Date: 12-19-2022
